Environmental Damping Sound Insulation Panel - SoundBox
G18
Environmental Damping Sound Insulation Panel
Suitable for enhancing the sound insulation of original walls and ceilings in equipment rooms, industrial plants, and industrial and commercial building spaces like KTV nightclubs.
- Model：
G18 Environmental Damping Sound Insulation Panel
- Specification：
1220mm (L) x 1220mm (W) x 16mm (T)
- Area：
1.4884m²
- Density：
20.7kg/㎡
- Weight：
1540kg (50pcs/pallet)
- Feature：

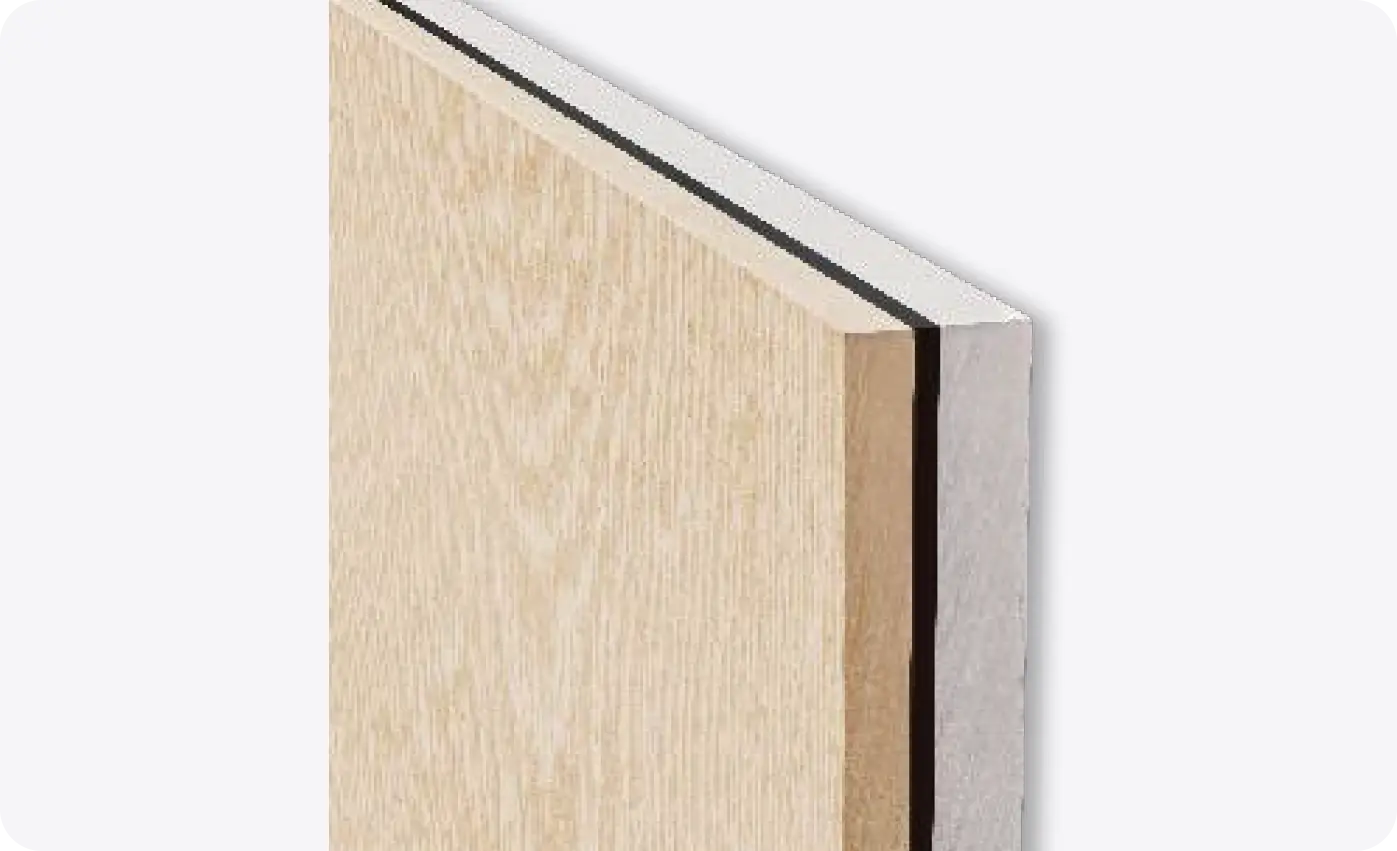

G18 composite damping sound insulation panels utilize inorganic materials of varying densities, sandwiched with high-polymer damping adhesive, and formed under high pressure in a sandwich structure. This creates a damping constraint structure, altering the original material's resonant frequency and significantly increasing both airborne and structural sound insulation. Features include an inorganic, flame-retardant, high-strength panel surface and superior sound transmission loss performance.
- Application：
High cost-performance ratio, suitable for large-scale construction. Applicable to equipment rooms, industrial plants, KTV nightclubs, and other industrial and commercial building spaces for sound insulation improvement and renovation of existing walls and ceilings.
- Airborne Sound Insulation：
The G18 composite damping sound-insulating panel adopts a sandwich structure, comprising inorganic materials of different densities laminated with polymer damping adhesive under high pressure.
This configuration forms a damping constraint structure that alters the original material's resonance frequency, significantly enhancing both its airborne and structural sound insulation performance.
Featuring an inorganic, non-combustible, and high-strength surface, the panel delivers exceptional sound transmission loss properties. Its cost-effectiveness makes it well-suited for large-scale construction applications.
Ideal for equipment rooms, industrial plants, KTVs, nightclubs, and industrial or commercial spaces, it can be applied to upgrade sound insulation in existing walls and ceilings.
