Damping Vibration Reduction Paint (Water-based) - SoundBox

F1000

Beige, gray, and dark gray—three colors for reference Available in standard capacities of 20kg/drum and 300kg/drum as required

Non-drip (thixotropic) Excellent adhesion to metals such as aluminum Cures to a hard, crack-resistant surface Flame-retardant, non-toxic, environmentally friendly Wide operating temperature and frequency range Applicable via air spray, airless spray, roller, or brush High performance, lightweight, specially formulated water-based damping composite for easy application and maximum performance utilization

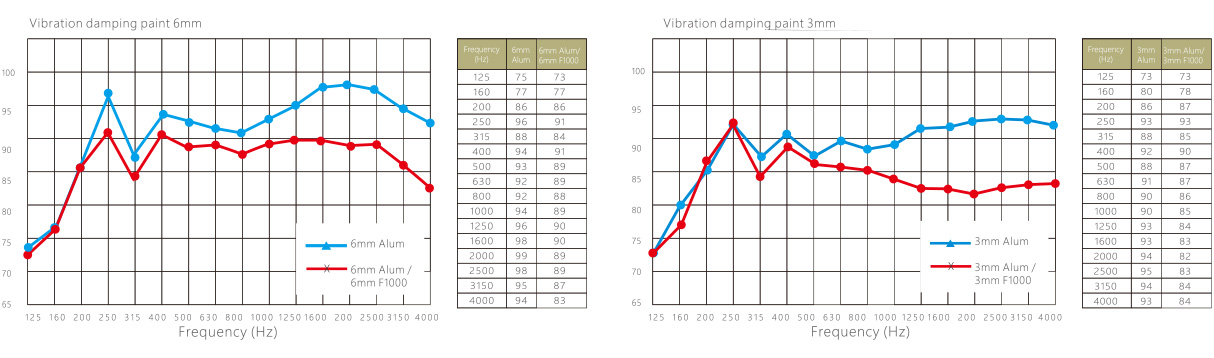

Excellent flame retardancy, meeting international yacht fire standards Water-based, easy to use and clean Lightest weight, best performing damping vibration reduction product Suitable for harsh outdoor exposure environments Increases transmission loss, significantly eliminating resonant noise Ideal for applications with stringent weight requirements

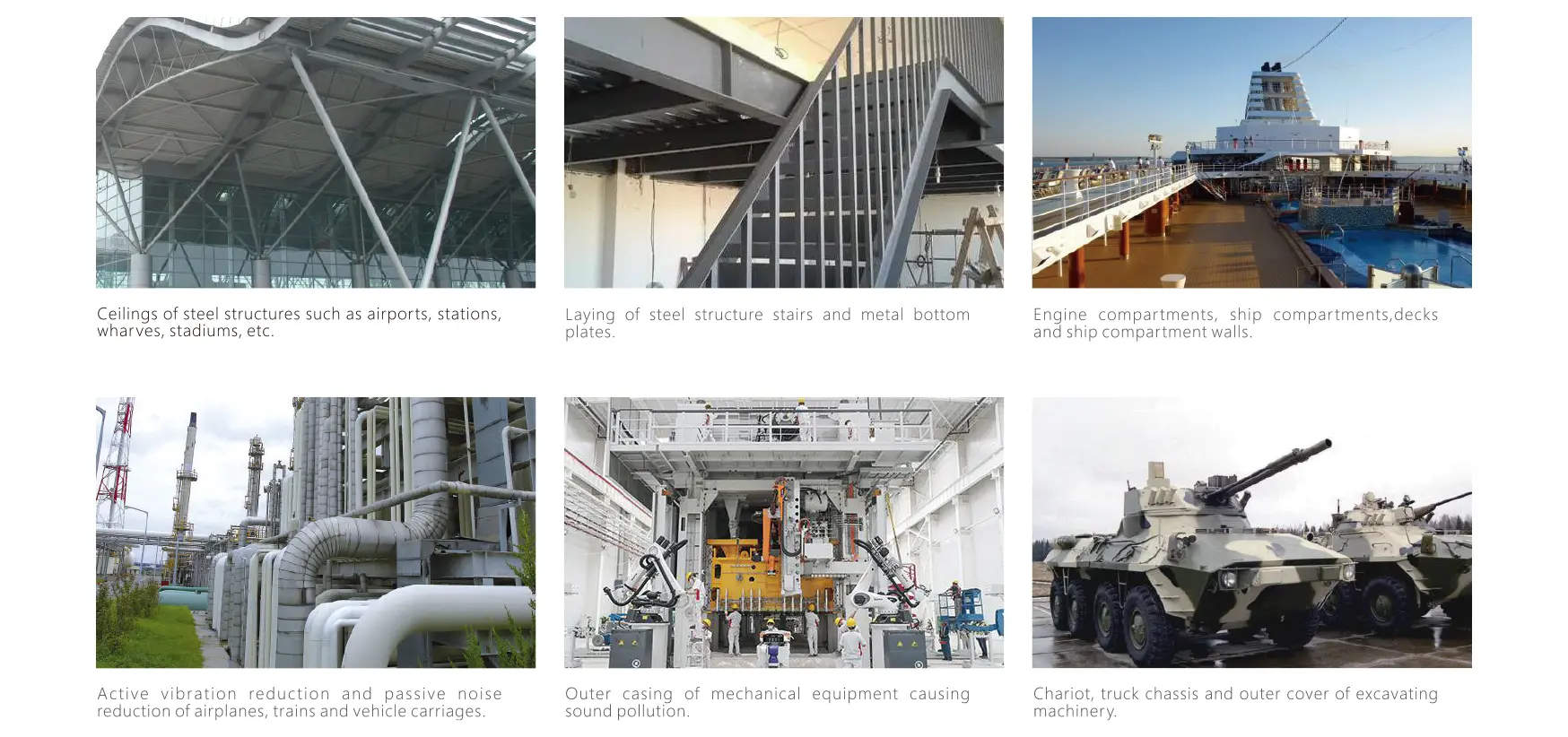

Roofs of steel-structured buildings such as airports, stations, docks, and sports venues Steel staircases and equipment with metal base plates Engine compartments, ship holds, decks, and bulkheads Active vibration damping and passive noise reduction for aircraft, trains, and vehicle cabins Undercarriages of combat vehicles and trucks, outer casings of excavation machinery Enclosures for machinery and equipment generating noise pollution

F1000 is a high-adhesion product specifically formulated for difficult-to-bond substrates such as bare aluminum, providing sufficient basic surface preparation. Clean all dust, dirt, oil, grease, rust, release agents, etc., from the surface. Brush the surface with a wire brush; sanding and sandpaper are recommended for optimal surface preparation. Degrease the surface using an appropriate degreasing solution. For iron substrates, a primer is recommended to prevent thin rust layers.

Before use, the product must be thoroughly stirred until uniform. If using a mixer, blend until smooth and pure white with consistent color. If necessary, viscosity can be adjusted by adding 0.3% water. Apply at temperatures above 15°C (59°F) with metal substrates exceeding 10°C (50°F). In air-conditioned environments, keep substrates dry and warm. Forced ventilation aids drying; airflow should circulate throughout the drying process.

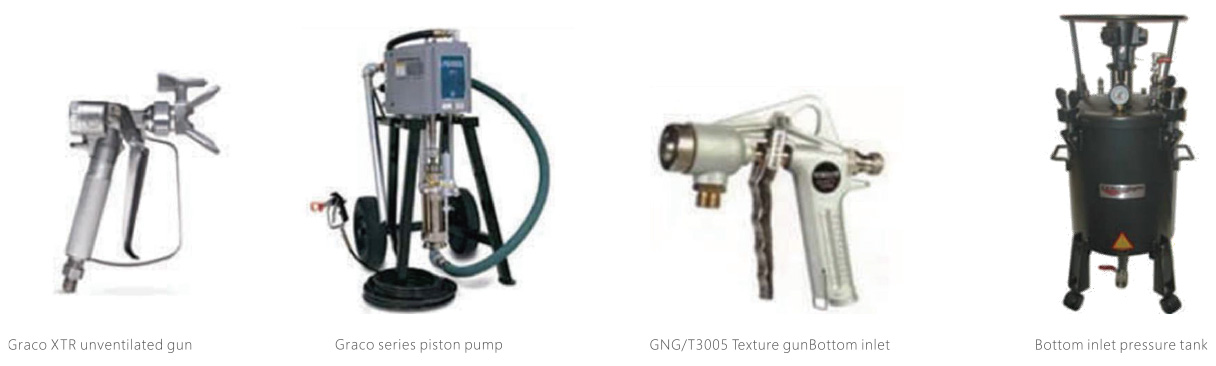

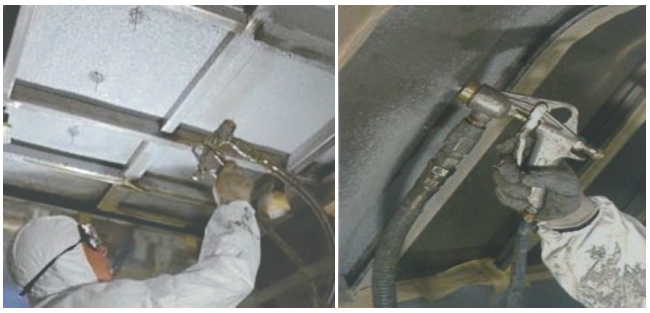

Jet Application: Please see the chart below for airless and air sprinkler systems Brush Application: We recommend adding 0.3% water per kilogram of product weight. This will help make application easier and smoother. Use a 100MM thickness nylon brush broom, the brush holds the sound insulation paint well and use short strokes. Apply a thick layer of about 2-3MM, avoid applying back and forth as it will become thinner. Roller application: We recommend adding 1% water per kilogram of product weight, this will help make application easier and smoother. Use a short rag roller, rolling in short strokes and rolling back and forth against the wall as this is what causes thinning. If there is a leak, use light brushing. The following data are for reference only, and comprehensive testing must be carried out before actual application on site.
