Sound Insulation Damping Pad / Mat - SoundBox
G25DX

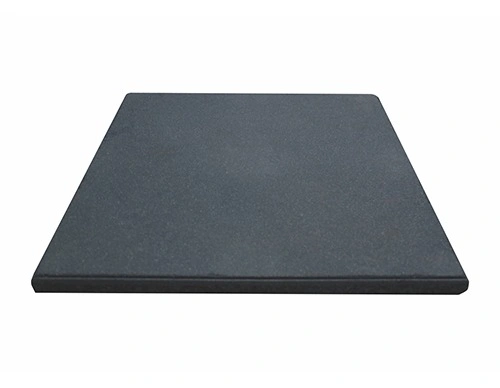

Sound Insulation Damping Pad / Mat
Used in residences, hotels, equipment rooms, private cinemas, HiFi listening rooms, recording rooms, and KTV nightclubs.
- Name：
Sound Insulation Damping Pad
- Model：
G25DX
- Weight：
5.5kg/pc
- Specification：
500mm x 500mm x 25mm
- Center Load：
500kg/pc
- Weight：
22kg/4pcs

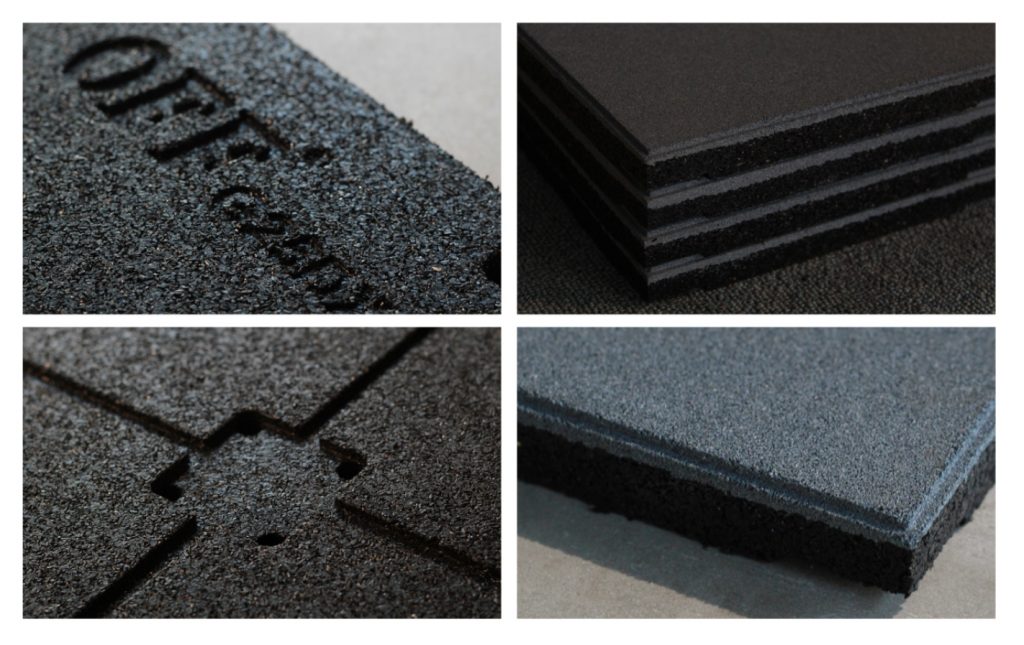

- Advantage：
- Application：
This technology is applied to the construction of floating floors in residences, hotels, computer rooms, private cinemas, Hi-Fi listening rooms, recording studios, and KTV nightclubs. It forms an impact sound-absorbing layer between the ground and the foundation structure, absorbing the downward transmission of footsteps and impact noise. It cuts off the path of sound energy and vibration waves to the foundation structure, significantly improving the impact sound insulation and vibration loss of the floor slab.
- Feature：
Modular and easy-to-install design; 25mm thickness enhances broadband absorption. Excellent support and cushioning properties; its development meets the sound insulation and noise reduction needs of multi-story buildings, commercial and residential buildings.
The OFF Damping and Vibration Isolation Acoustic Mat utilizes an EPDM damping base material. This flexible material boasts advantageous physical properties such as high resilience, damping capacity, and adhesion, resulting in excellent acoustic characteristics in sound energy and vibration wave transmission loss.
Its full-coverage application design generates a balanced and substantial surface support force. This not only effectively broadens the vibration isolation frequency range but also forms an airborne sound insulation layer of up to 20 dB on the structural surface. This fully utilizes the material's inherent characteristics, truly achieving a structure-free vibration isolation and acoustic damping effect.
The closed-cell characteristic ensures the material does not absorb water, thereby minimizing the potential for corrosion and making it exceptionally suitable for use in humid and high-moisture areas.
It offers excellent weather resistance and will not powder, soften, or harden due to exposure to UV radiation, ozone, or acid rain. It provides a long service life, resists mold and mildew growth, inhibits bacterial proliferation, and is green and environmentally friendly with no harmful gas emissions.
