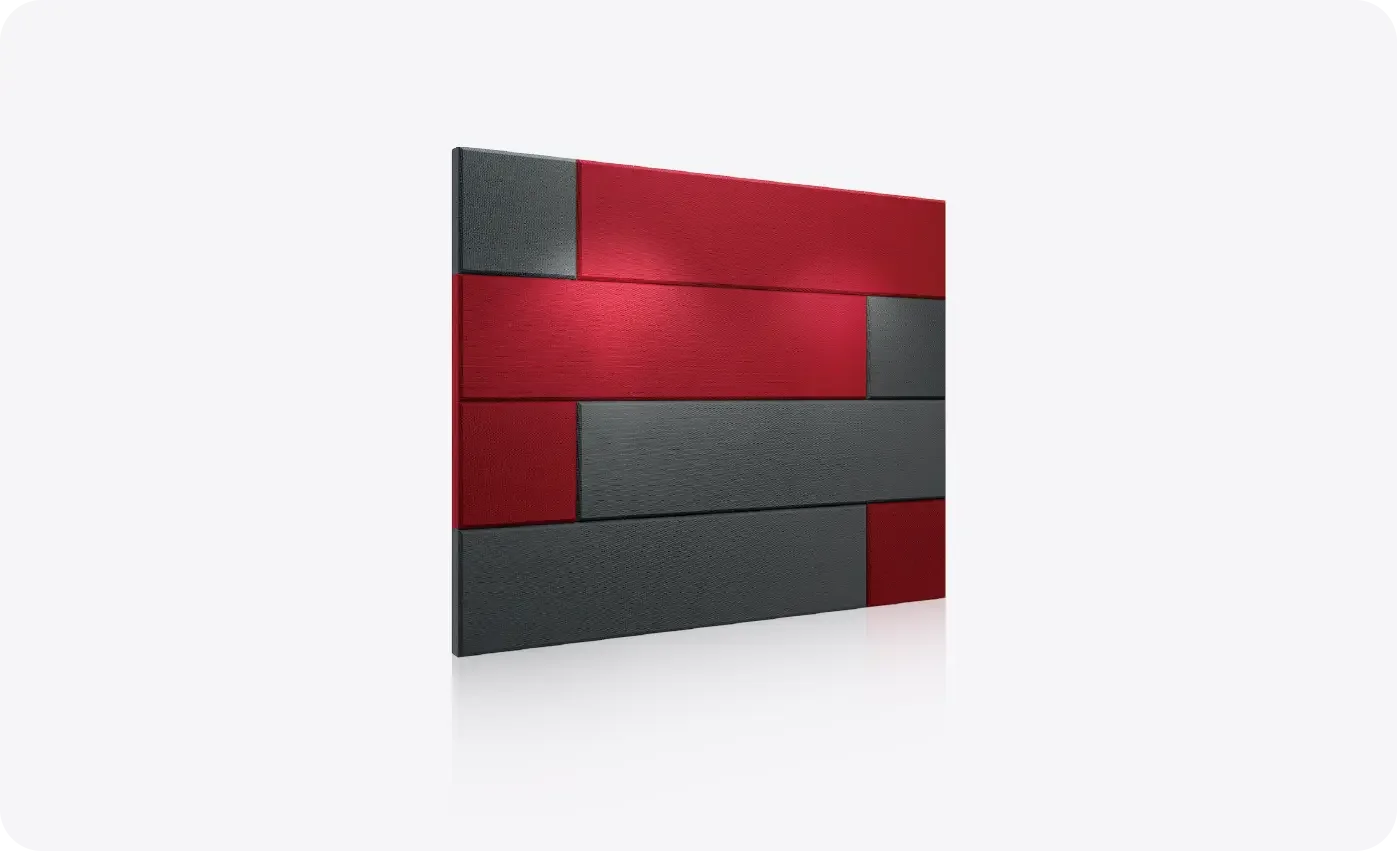

Fabric acoustic panel

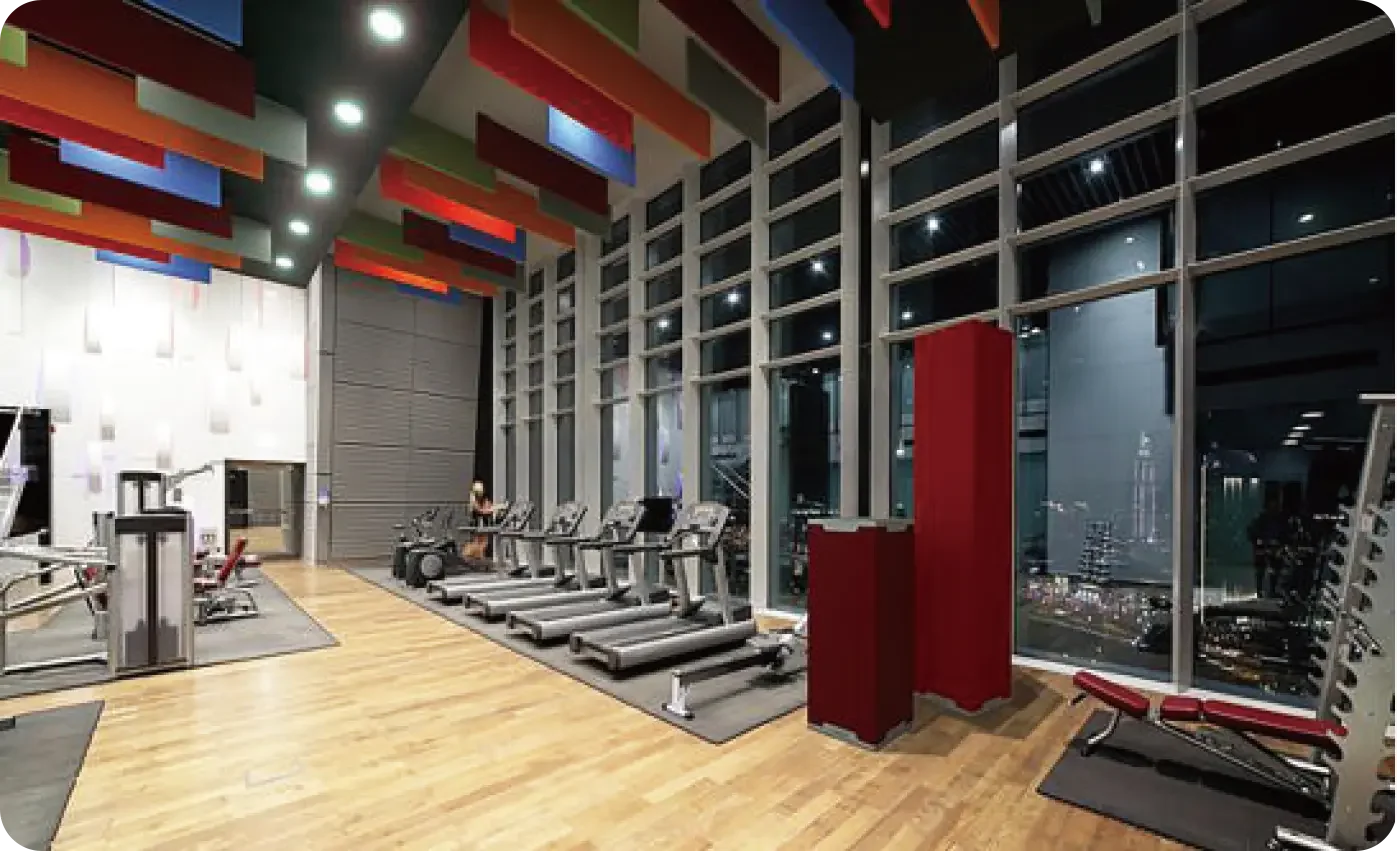

Suitable for large or semi-open spaces such as multi-function halls, banquet halls, churches, temples, cinemas, and broadcasting studios.

Model：
CM28/30/60/120（Right Angle）、CM28T/30T/60T/120T（Chamfered Angle）
Fire Rating：
Acoustic base material and frame structure are Class A non-combustible; acoustic fabric can be processed with Class B/C flame retardancy
Feature：
Patented easy-installation solution completely resolves issues with traditional resin-cured soft-pack frames, including non-standardization, lack of environmental friendliness, non-flame retardancy, and moisture-induced mold and deformation. Effectively addresses the acoustic flaw where traditional sound-absorbing soft packs sacrifice over 10% of sound absorption capacity due to resin-cured frames.
Application：

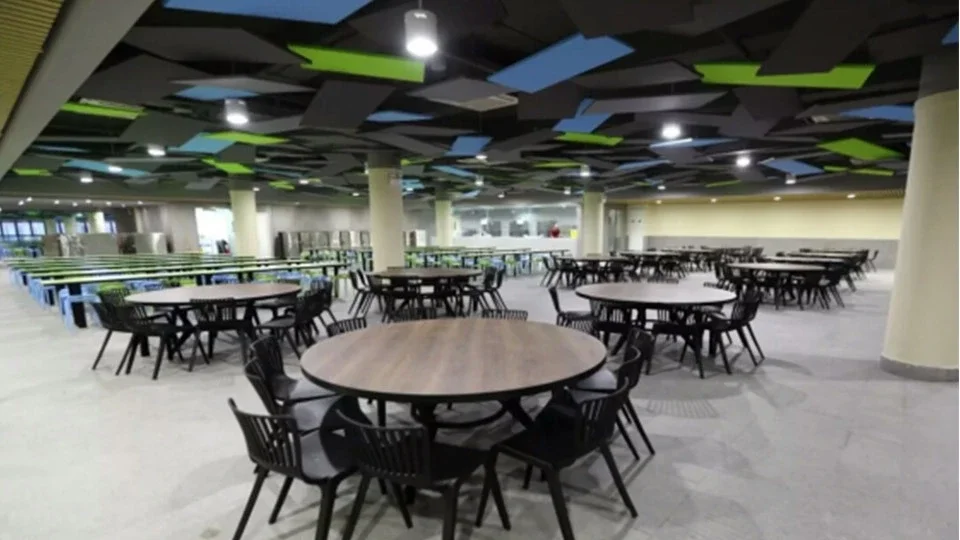

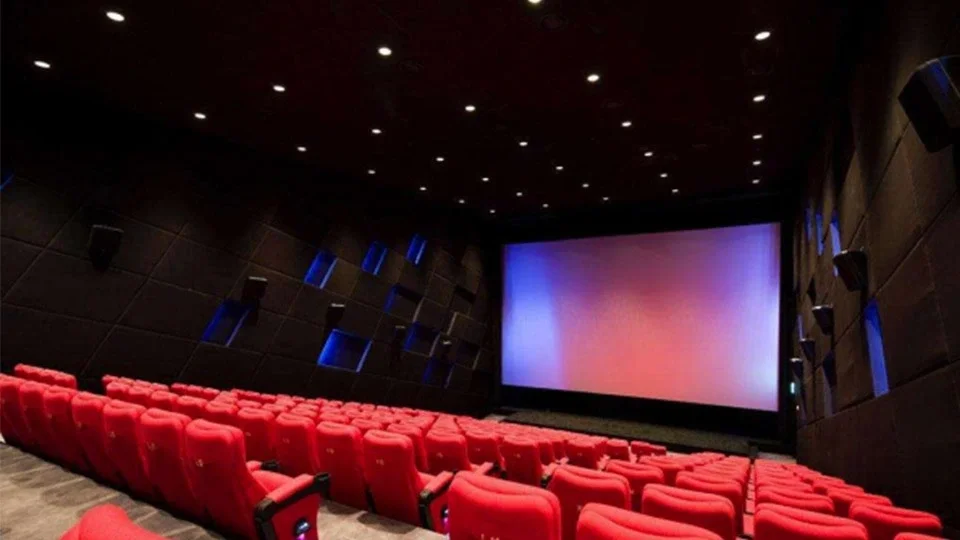

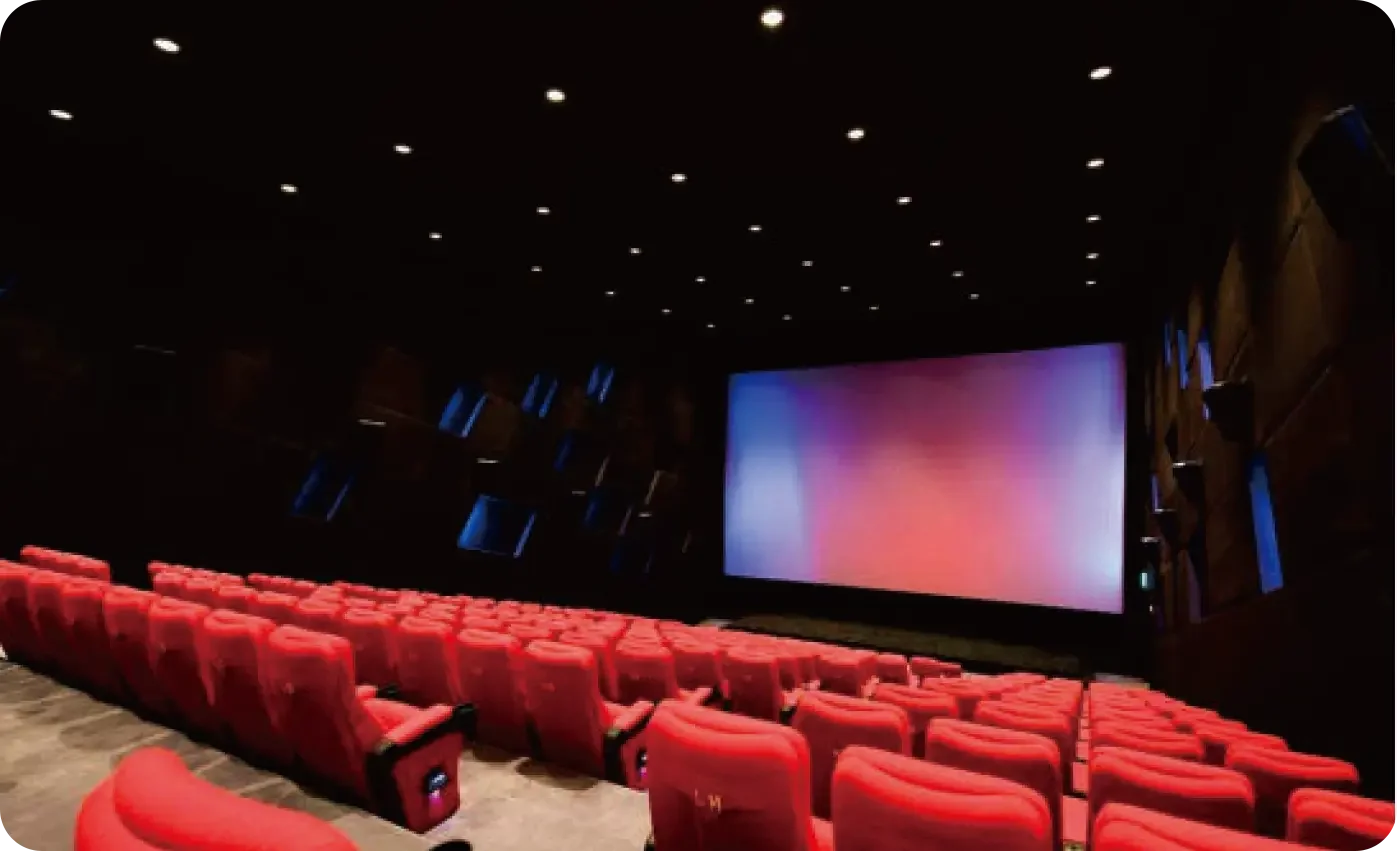

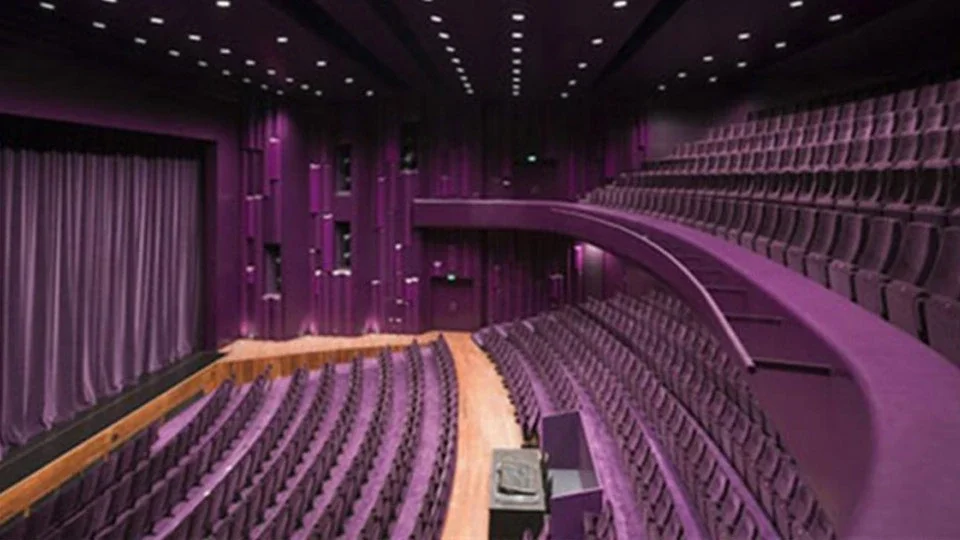

Multi-purpose halls, banquet halls, churches, Buddhist halls, cinemas, broadcast studios, and other large or semi-open spaces
Material：
Custom Inorganic Fiber Acoustic Cotton (Yellow Fiber)
Frame Structure：
Lightweight, high-strength metal-formed frame
Finish：
Grade A/B/C Acoustic Fabric Options

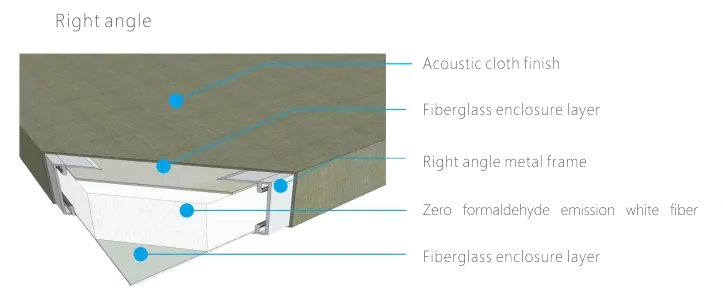

Right Angle Structure：

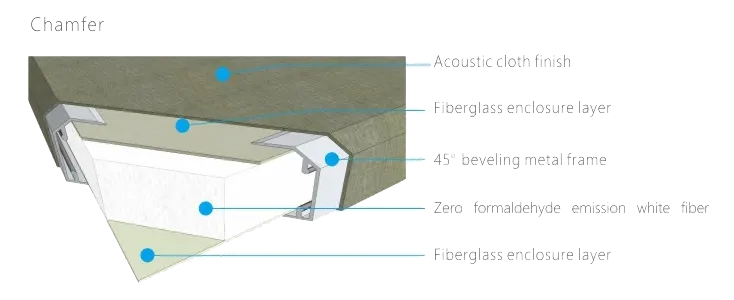

Chamfered Angle Structure：
Specification：
≥200*200mm，≤1200*2400mm 、Thickness 28/30/60/120mm
NRC：
