Audio Room Soundproof Door - SoundBox
G50MPX

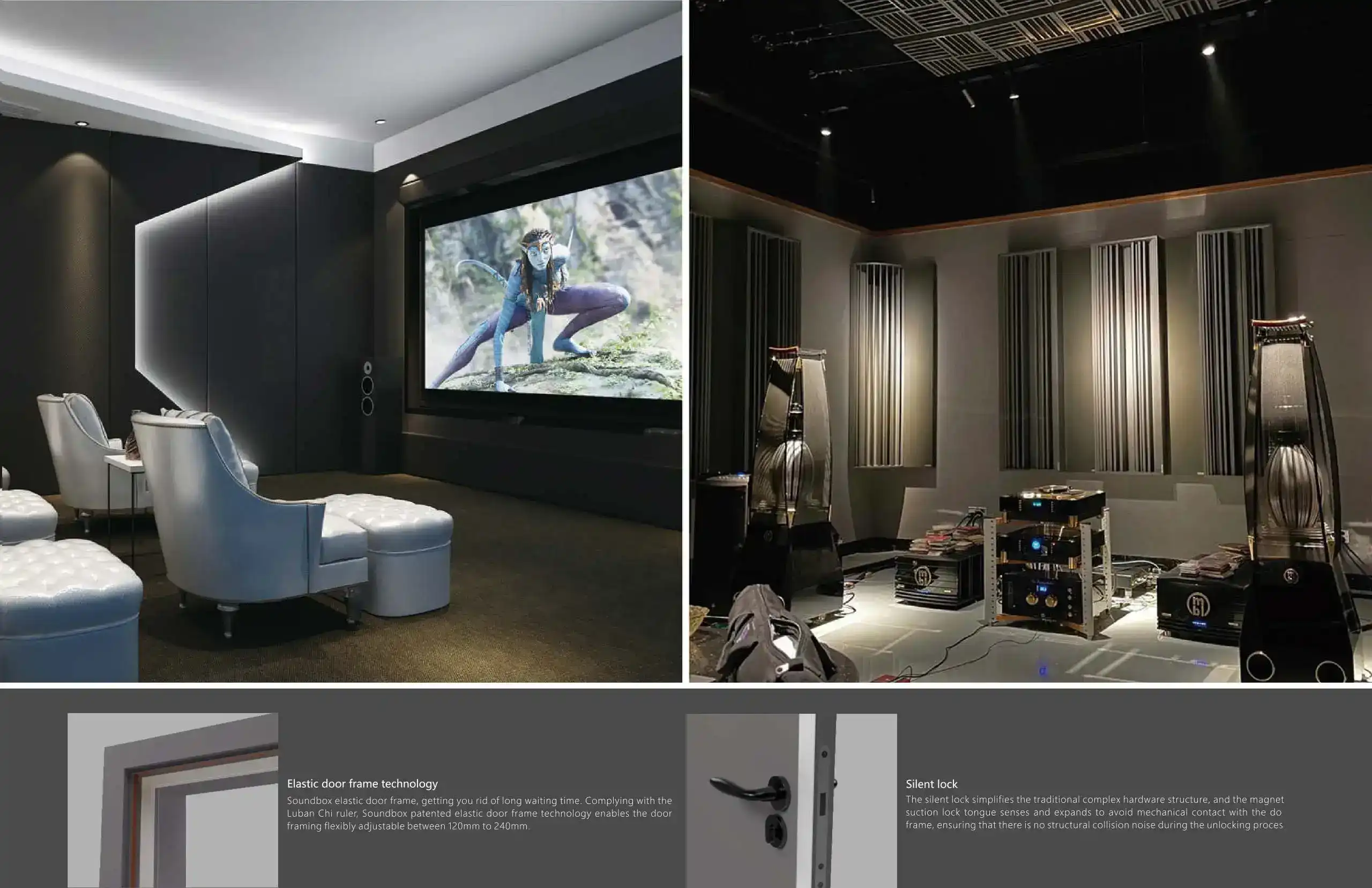

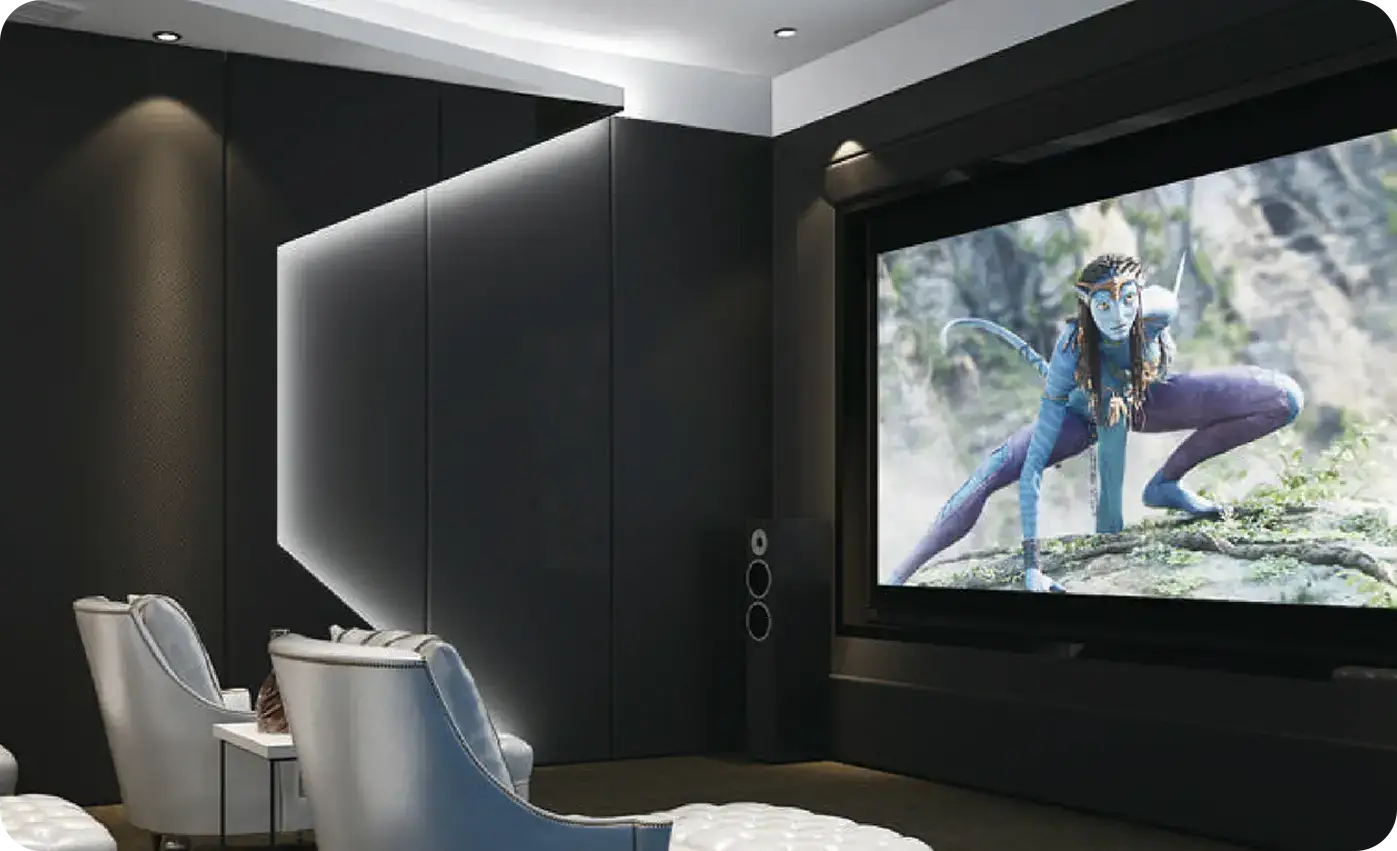

Full-spectrum sound insulation of 38 dB; close the door to immediately have a quiet space.Suitable for: private cinemas, HiFi audio rooms, and piano practice rooms.
- Color：
_1761818460864.webp)
- Product Model：
G50MPX
- Product Features：
50mm thick carbon-plastic composite soundproof door leaf, graphene thermal expansion smoke-resistant seal strip, servo-driven telescopic carbon-plastic door frame, beveled magnetic soundproof seal strip, flame-retardant soundproof door core, 3D invisible hinges, silent door lock, fixed sound barrier.
- Environmental Protection Level：
Complies with the international E0 environmental standard (zero emissions)
- Finish Material：
Plain-colored water-based paint / Pre-finished wood veneer
- Size：
Door Frame Dimensions: H2200*W900*D120 / 388mm (Opening Size +10mm) Door Panel Dimensions: H2165*W842*D50mm
- Product Weight：
Gross weight ≤ 105 kg (Door panel net weight ≤ 57 kg / Door frame net weight ≤ 20 kg)
- Sound Insulation Index：
STC39dB (+2)
- Sound Insulation Specifications：
The product's sound insulation rating is based on laboratory test results. Improper installation or sound transmission through the surrounding structure may affect the product's performance.

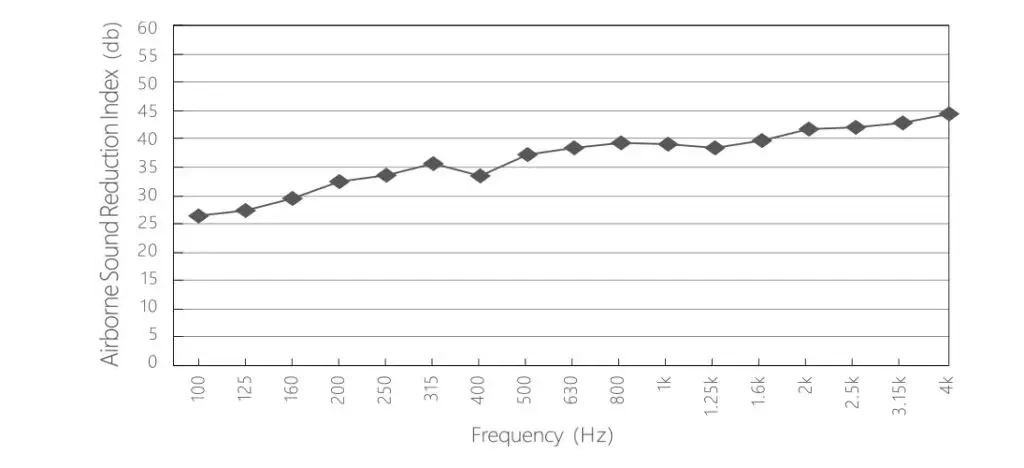

- Air Sound Insulation：
Servo Door Frame Technology
Say goodbye to customizations and long waiting times. Designed in accordance with Lu Ban ruler door specifications and incorporating Soundbox's patented servo-type telescopic door frame technology, it adapts to uneven wall thicknesses, allowing free cutting for walls ranging from 120mm to 240mm in thickness.
Quiet Lock
The quiet lock simplifies the complex traditional hardware structure, replacing mechanical components with a non-transmission module. The magnetic lock tongue senses and retracts, avoiding mechanical contact with the door frame.
This ensures a noiseless locking and unlocking process, making the door both soundproof and silent.
