Composite Damping Sound Insulation Panel - SoundBox
OEM15
Composite Damping Sound Insulation Panel
Suitable for enhancing the sound insulation of original walls and ceilings in equipment rooms, industrial plants, and industrial and commercial building spaces like KTV nightclubs.
- Model：
OEM15 Composite damping sound insulation panel
- Size：
2440mm (L) x 1220mm (W) x 15mm (T)
- Specifications and dimensions：
2.9768m²
- Areal Density：
19.3kg/㎡
- Single Pallet Weight：
2298kg (40pcs/pallet)
- Features：

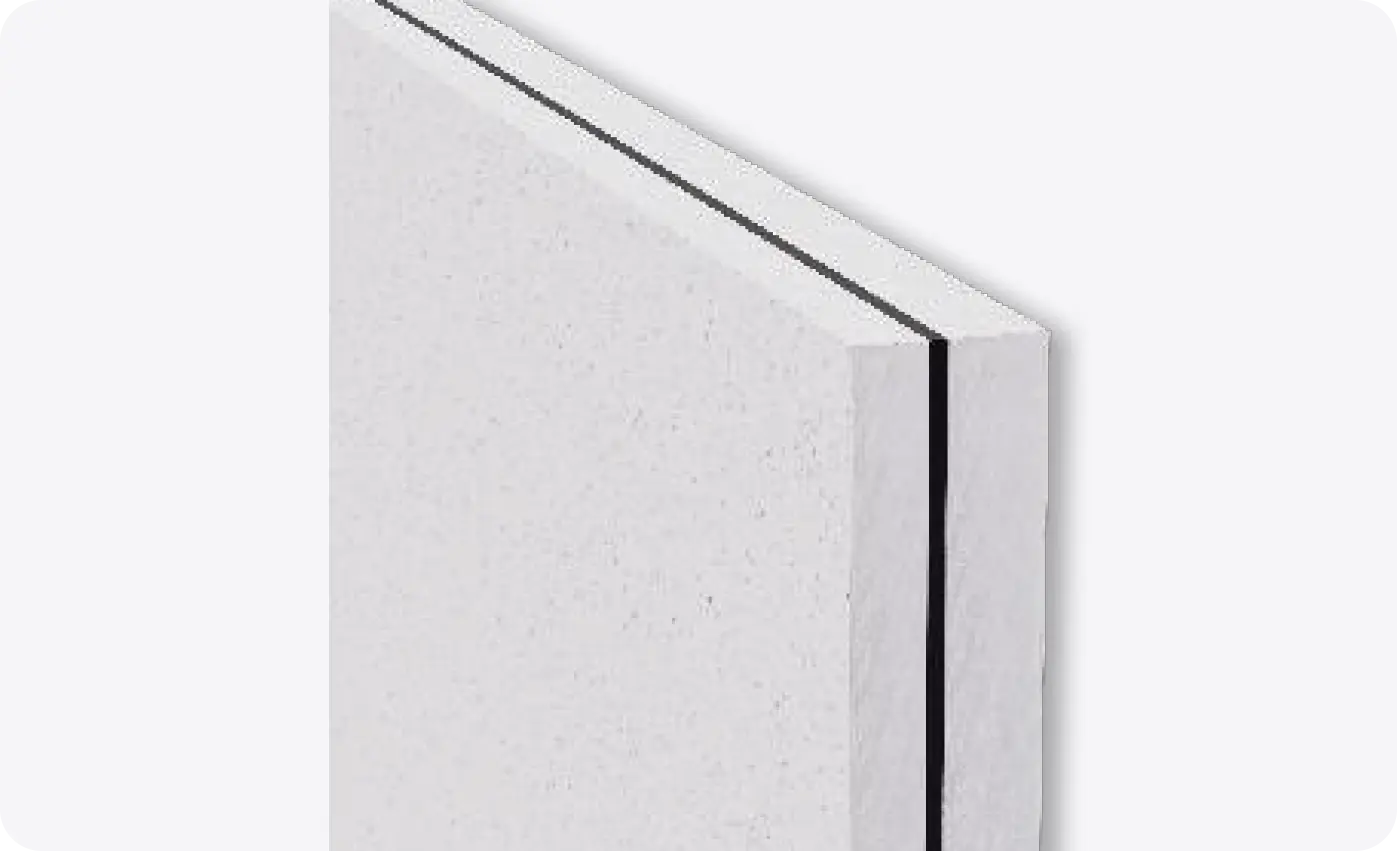

The two sides of the composite damping sound insulation board are made of inorganic materials of different densities, sandwiched with polymer damping glue, and the sandwich structure is compositely molded under high pressure to form a damping constraint structure, which changes the resonance frequency of the original material and multiplies the air sound insulation and structural sound insulation of the original material. Features: Inorganic flame-retardant high-strength board, excellent sound transmission loss performance.
- Scope of Application：
High cost performance and suitable for large-area construction and use. It is suitable for equipment rooms, industrial plants, KTV nightclubs, industrial and commercial building spaces to improve the sound insulation of original walls and ceilings.
- Veneer Air Sound Insulation：
The composite damping sound-insulating panel features a sandwich structure, which is formed by high-pressure lamination of inorganic materials of different densities on both sides and a polymer damping adhesive in between.
This creates a damping constraint structure that alters the resonant frequency of the original materials, significantly enhancing both the airborne sound insulation and structural sound insulation performance.
The panel is characterized by an inorganic, non-combustible, and high-strength surface, along with excellent sound transmission loss properties. Its high cost-effectiveness makes it suitable for large-scale construction applications.
It is ideal for use in equipment rooms, industrial plants, KTVs, nightclubs, and industrial or commercial building spaces, where it can be applied to upgrade the sound insulation of existing walls and ceilings.
