Metal Damping Sound Insulation Panel - SoundBox
G20J
Metal Damping Sound Insulation Panel
Suitable for active sound insulation structures and soundproof door construction in high-sound pressure level environments such as bars, nightclubs, and high-noise equipment rooms.
- Model：
G20J Metal damping sound insulation panel
- Size：
1220mm (L) x 1220mm (W) x 18mm (T)
- Single Piece Area：
1.4884m²
- Areal Density：
25.7kg/㎡
- Single Pallet Weight：
1530.00kg (40pcs/pallet)
- Features：
Inorganic and non-combustible metal materials. Excellent sound insulation performance with high sound pressure across all frequencies. Both airborne and structural sound insulation capacities are three times that of similar soundproof panels.
- Scope of Application：
It is suitable for the construction of active sound insulation structures and sound insulation doors in bars, nightclubs, high-noise computer rooms, etc. with loud pressure levels.
- Veneer Air Sound Insulation：

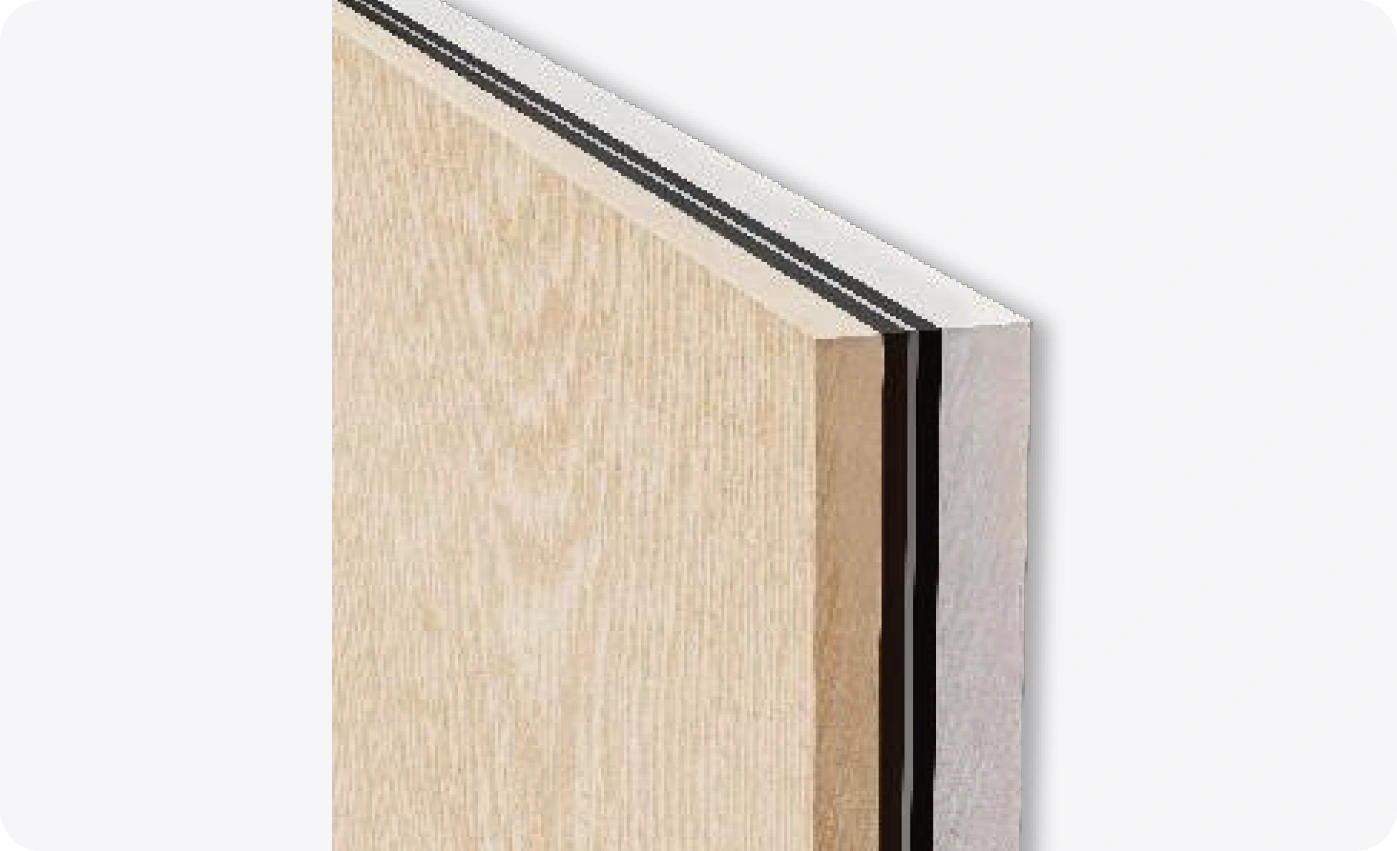

The front and back panels are made of inorganic materials with different densities and thicknesses, while the core layer consists of a soft-state aluminum metal plate. These components are bonded with double-layer polymer damping materials and formed by adhesive-free high-pressure composite molding.
The soft-state aluminum plate in the core layer exhibits significant sound isolation properties for mid-to-high and ultra-high frequencies, while the high-density front and back panels provide excellent mid-to-low frequency sound insulation. The double-layer damping constraint structure generates highly effective shear stress to suppress low-frequency and ultra-low frequency sound transmission.
