Vertical Diffusion Panel - SoundBox
AQ4000

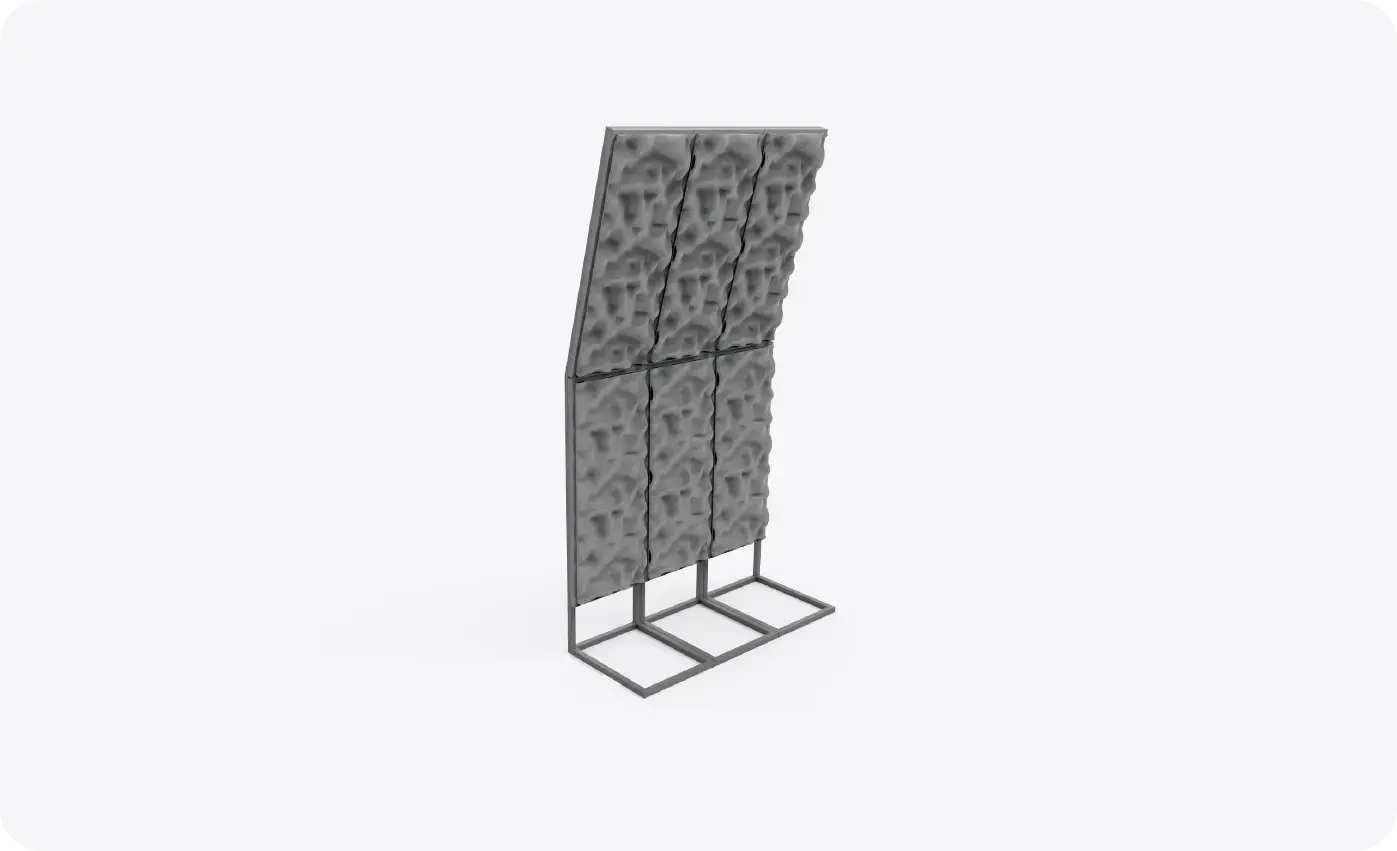

Vertical Diffusion Panel
Mobile acoustic baffles easily and effectively absorb ineffective sound energy from the back wall in large spaces such as churches, auditoriums, and multi-function halls. They control environmental acoustic defects in large spaces, such as long reverberation time, flutter echo, parallel surface reflections, and mid-low frequency standing waves.
- Model：
AQ4000
- Environmental Performance：
Complies with international E0 standard
- Product Structure：
Patented anti-sound reflection and resonance design, anti-oxidation treatment, patented metal frame structure. Front features MLS cloud diffusion surface with HIPS one-piece molding for lightweight MLS cloud diffusion. Rear utilizes environmentally friendly acoustic composite cotton with non-uniform density.
- Feature：
Movable acoustic baffles effectively absorb unwanted sound energy from rear stage walls in churches, auditoriums, and multipurpose halls. They control reverberation time, flutter echoes, parallel plane reflections, and mid-to-low frequency standing waves in large spaces. Easily configure movable semi-enclosed diffusion walls to directionally reflect and disperse primary sound energy.
- Weight：
60kg/Set
- Color：
- Finish：
The sound-absorbing surface features a flame-retardant acoustic fabric with a flocked finish, while the diffusing surface is coated with a PU matte paint.
- Specification：
H3500xW800xD800mm
- NRC：
