Chassis Kit - SoundBox
AZ0301
Chassis Kit

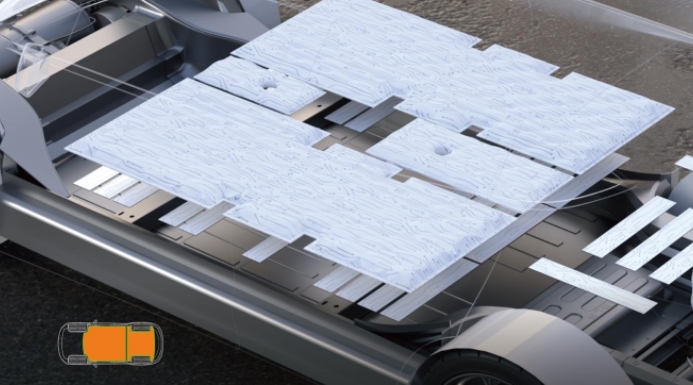

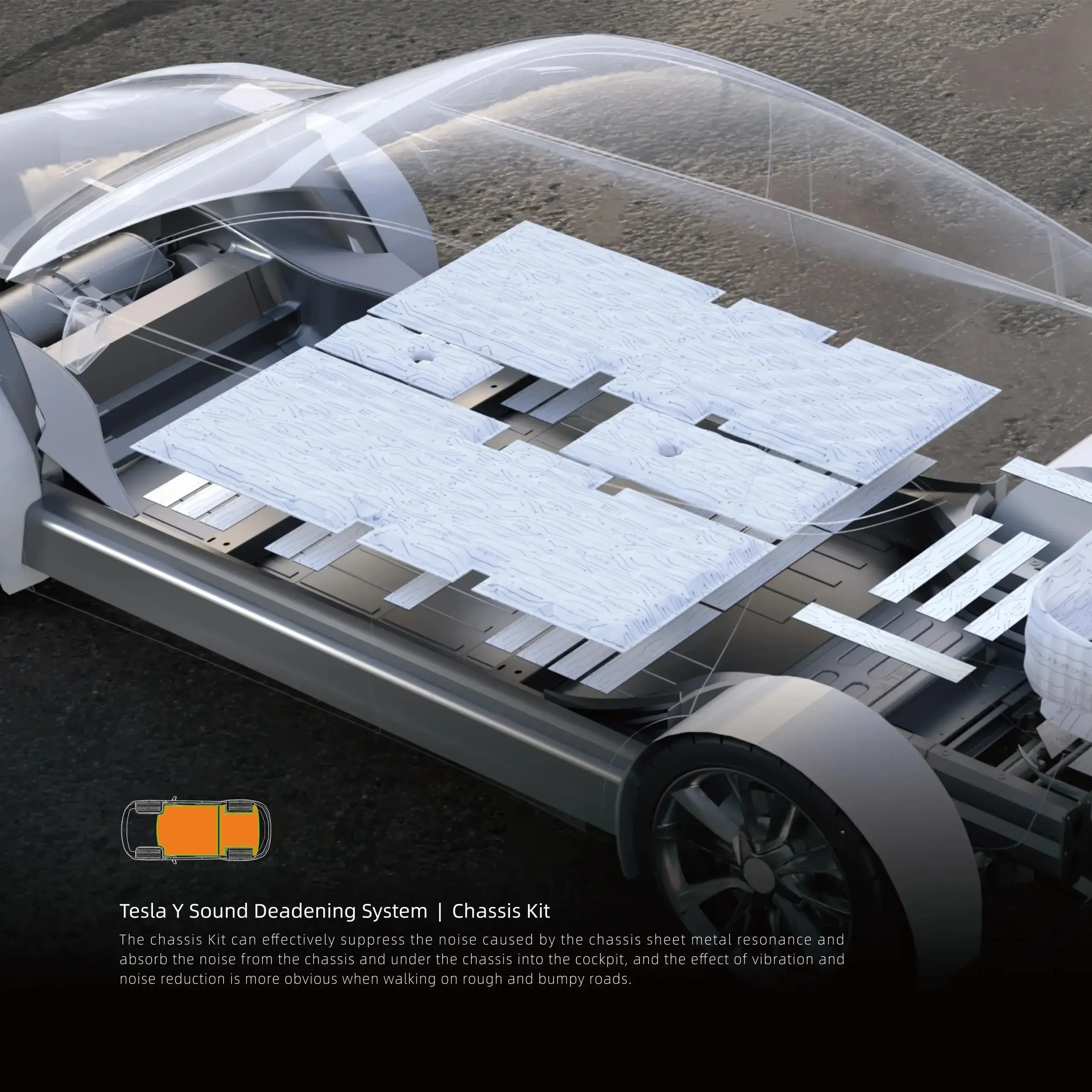

Effectively suppresses noise caused by chassis sheet metal resonance and absorbs noise transmitted into the cabin from the chassis and underneath the chassis. The effect of vibration damping and noise reduction is more noticeable when driving on rough and bumpy roads.
- Name：
Chassis Kit
- Model：
AZ0301

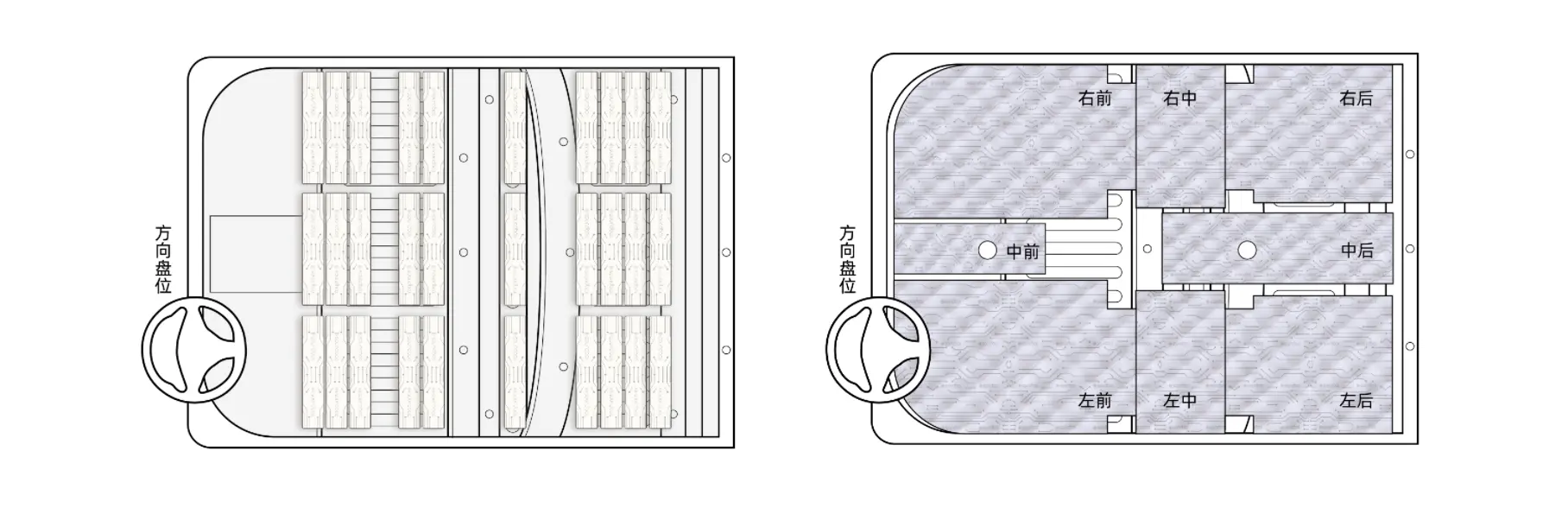

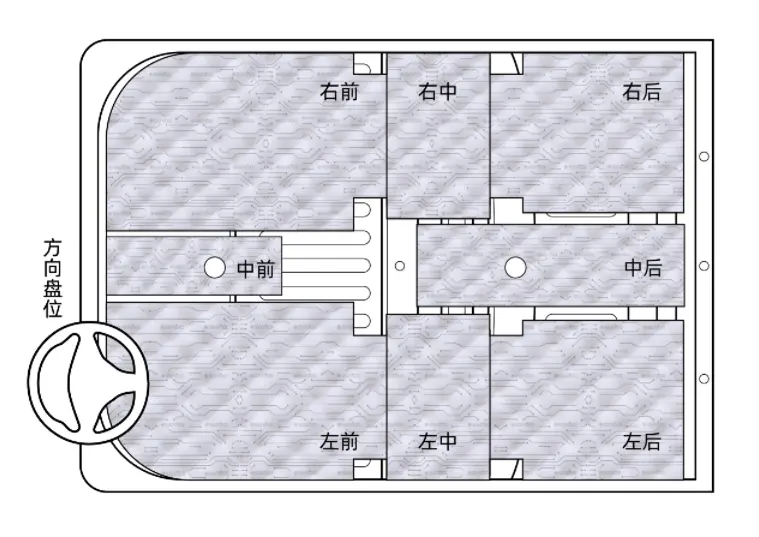

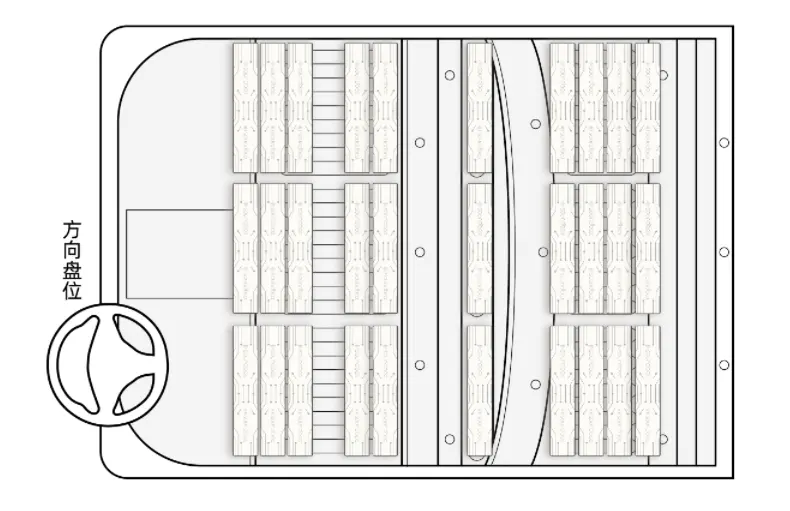

- Material Configuration：
Byer Bayer acoustic cotton 2PCS , Byer Bayer acoustic cotton 2PCS , Byer Bayer acoustic cotton 2PCS , Byer Bayer acoustic cotton 1PCS , Byer Bayer acoustic cotton 1PCS , IIR damping sound insulation and vibration reduction glue 15PCS , IIR Energizer Damping Sound Insulation and Vibration Reduction Glue 15PCS
- Material Specifications：
500g*590*680 、500g*530*470 、500g*550*250 、500g*180*410 、500g*260*610 、2.5*73*410 、5.0*73*410

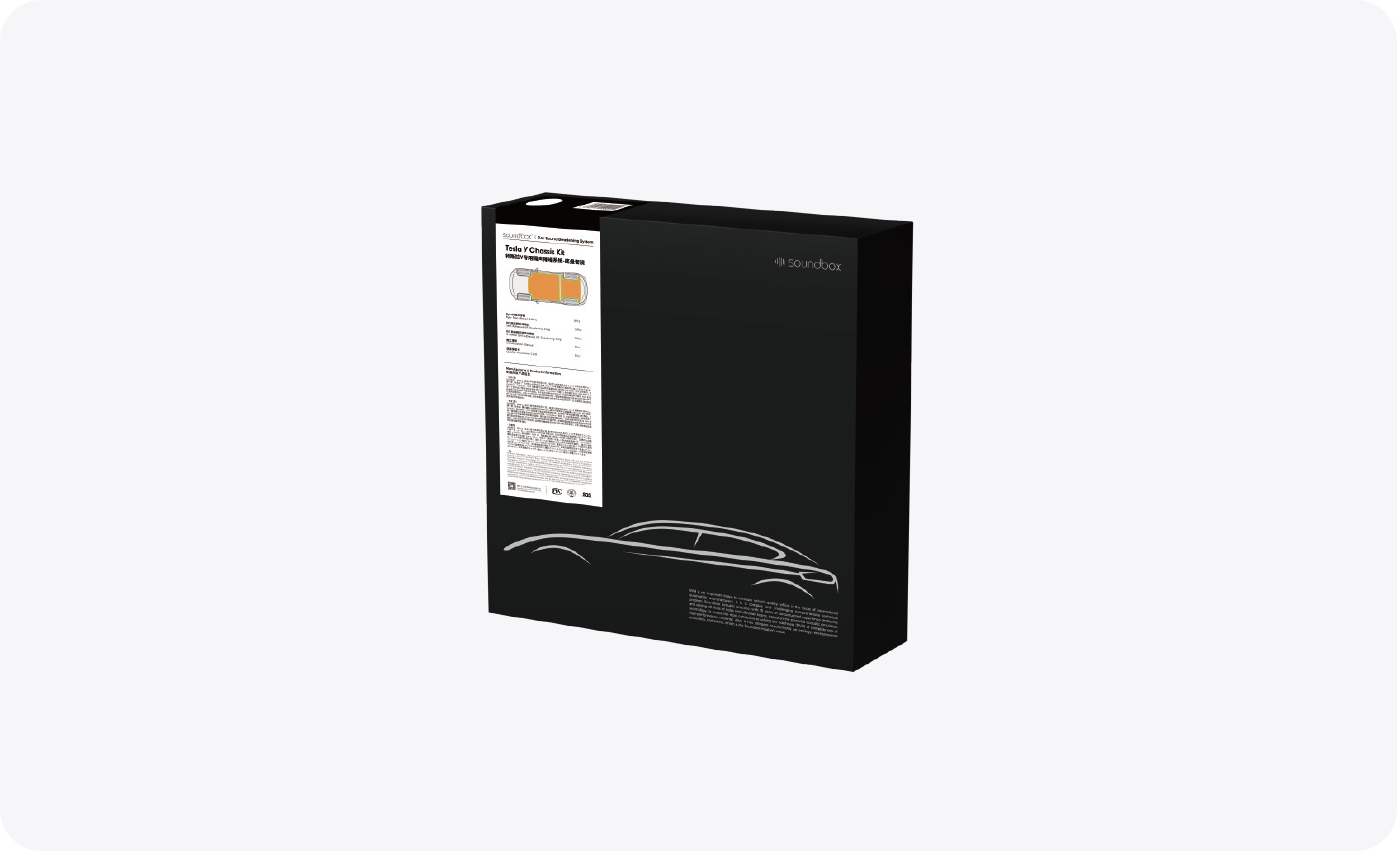

- Packaging Specifications：
530*150*530
- Gross Weight：
9KG
- Net Weight：
7.5KG
- Problem-solving Effectiveness：
Effectively suppresses noise caused by chassis sheet metal resonance and absorbs noise transmitted from the chassis and underbody into the cabin. Vibration damping and noise reduction are particularly noticeable when traversing rough and bumpy roads.

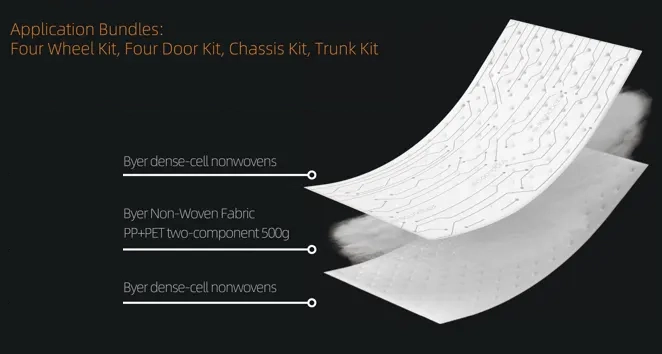

- Byer Acoustic Cotton：
3D three-dimensional, voluminous, mesh-like, continuous porous fiber material features a vast number of fine, dense micro-voids. This allows sound waves to easily and effectively penetrate deep into the micro-cavities, where they are converted into vibrations and subsequently dissipated and absorbed. It also effectively eliminates reflected waves, demonstrating particularly outstanding absorption characteristics for mid-to-high frequency noise. This contributes to enhancing automotive NVH noise reduction performance.

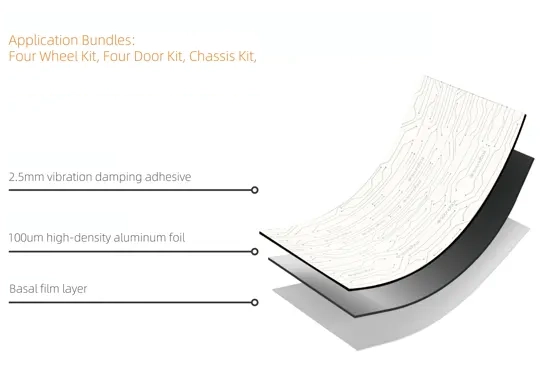

- IIR Damping Soundproofing and Vibration-Absorbing Adhesive：
Ultra-high-density polymer IIR damping soundproofing and vibration-reducing adhesive bonded to high-density aluminum foil is applied to the vehicle body sheet metal surface. As a viscoelastic material, it effectively reduces noise and vibration. Depending on the vehicle body location, it is paired with IR Power damping soundproofing and vibration-reducing adhesive to significantly enhance sound insulation and vibration damping performance.

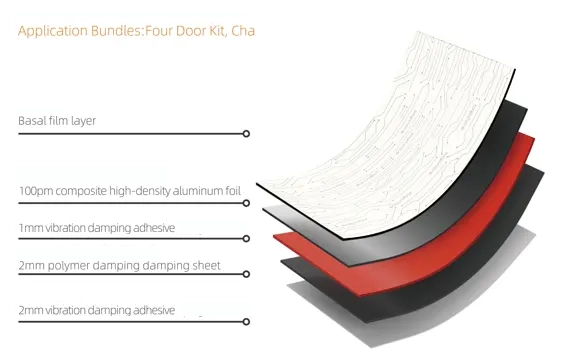

- IIR Energy-Absorbing Damping Soundproofing and Vibration-Damping Adhesive：
