Mobile Acoustic Baffle - SoundBox
AQ1000H/HD
Mobile Acoustic Baffle
Mobile acoustic baffles easily control environmental acoustic defects in spaces such as conference rooms, multi-function halls, and offices, including reverberation time, flutter echoes, parallel surface reflections, and mid-low frequency standing waves. Quickly construct a mobile acoustic screen structure that meets acoustic specifications.
- Model：
AQ1000H/HD
- Color：
- Finish：
The sound-absorbing surface is made of plush flame-retardant acoustic fabric, and the diffusion surface is coated with PU matte paint (refer to the color chart)
- Substrate：
Unequal density ultra microporous glass fiber acoustic composite cotton, environmentally friendly and emission free treatment.
- Structure：
Design patent for anti sound reflection and resonance, anti oxidation treatment, metal frame patented structure, A-side full frequency strong sound absorption, B-side HIPS one-time forming MLS cloud diffusion surface.
- Environment Erotection：
Meets international requirements E0 standard
- Flame Retardant：
Grade A Substrate
- Weight：
AQ1000H 28kg 、AQ1000HD 15.5kg
- Specification：
AQ1000H H2100 * W800 * D200mm (including diffusion convex surface, H height including tripod)、AQ1000HD H2000 * W800 * D100mm (including diffusion convex surface)
- Use：

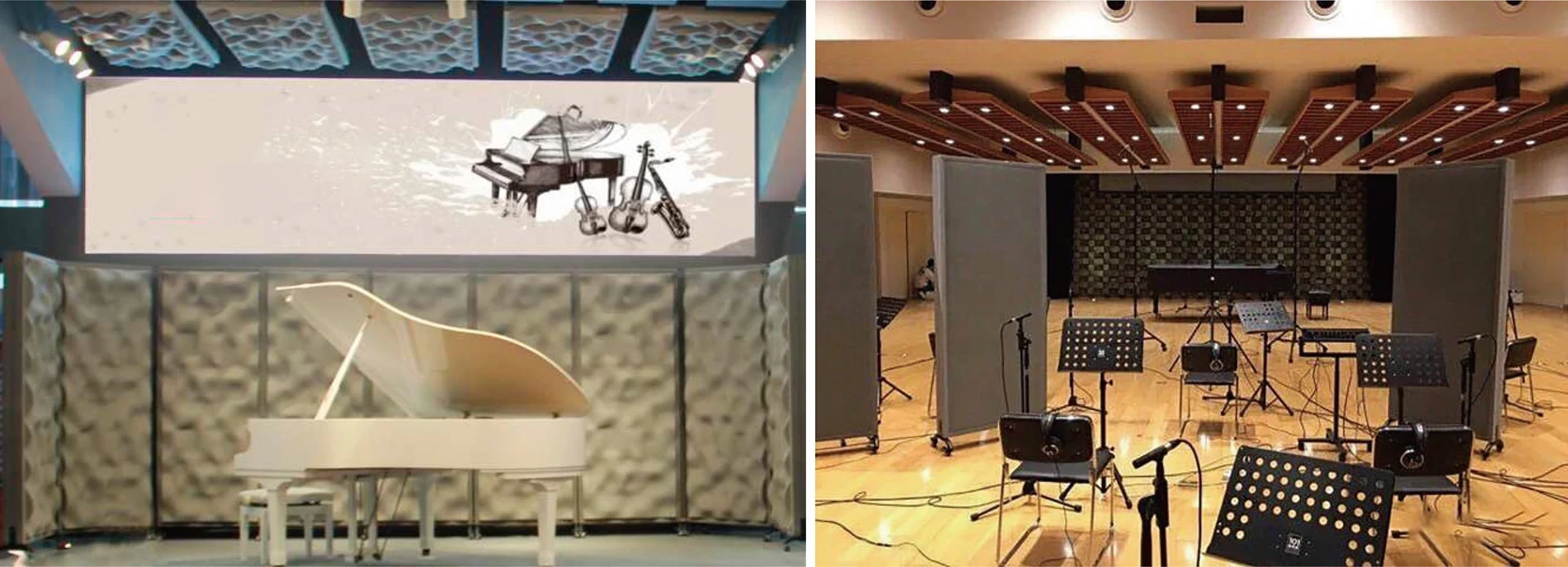

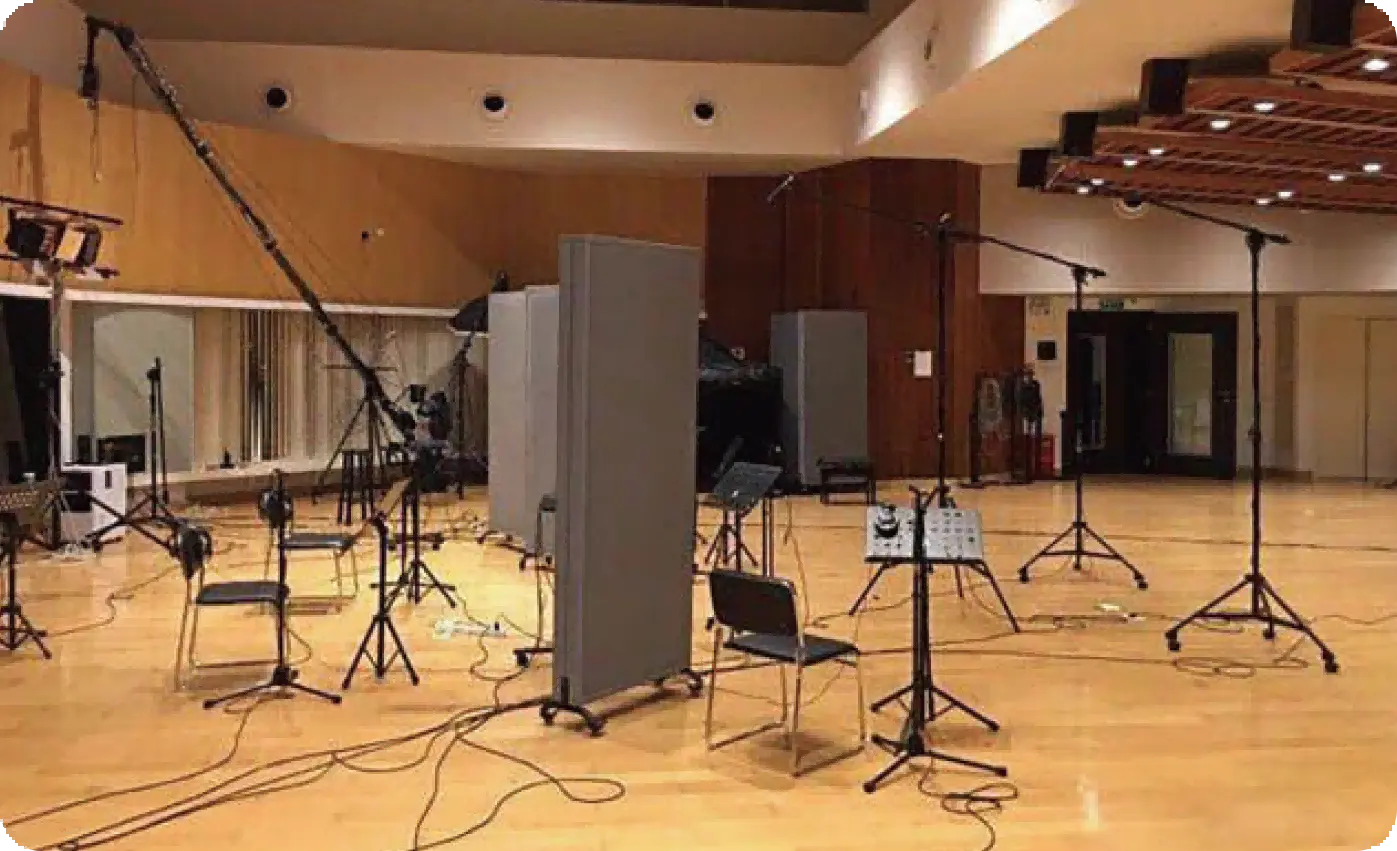

AQ1000H easily builds a semi enclosed sound-absorbing and anti sound barrier for movable stages. AQ1000HD constructs a suspended stage and hall top sound absorbing and anti sound barrier.
- Install：
AQ1000H comes standard with a mobile pulley device and a hidden matrix fixed slot on the frame. AQ1000HD comes with pre installed lifting holes as standard, which can meet any installation plan in both horizontal and vertical directions.
- NRC：
Mobile Acoustic Baffle
