Environmental Damping Sound Insulation Panel - SoundBox
G16E

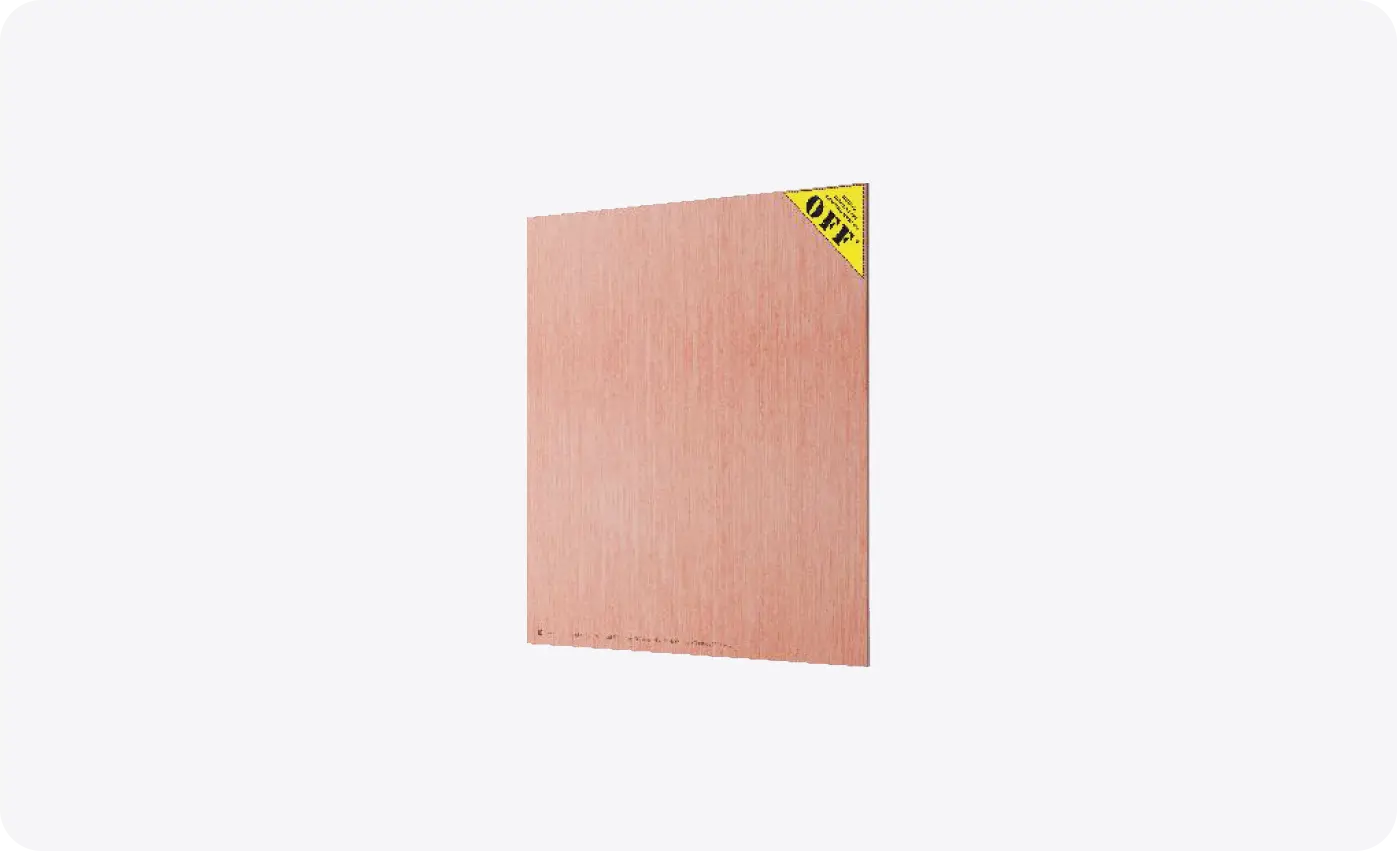

Environmental Damping Sound Insulation Panel
Suitable for enhancing the sound insulation of partition walls, original walls, and ceilings in places such as residences, hotel rooms, piano rooms, and recording rooms.
- Model：
G16E Environmental Damping Sound Insulation Panel
- Specification：
1220mm (L) x 1220mm (W) x 13mm (T)
- Area：
1.4884m²
- Density：
17.5kg/㎡
- Weight：
55kg (2pcs/pallet)
- Feature：

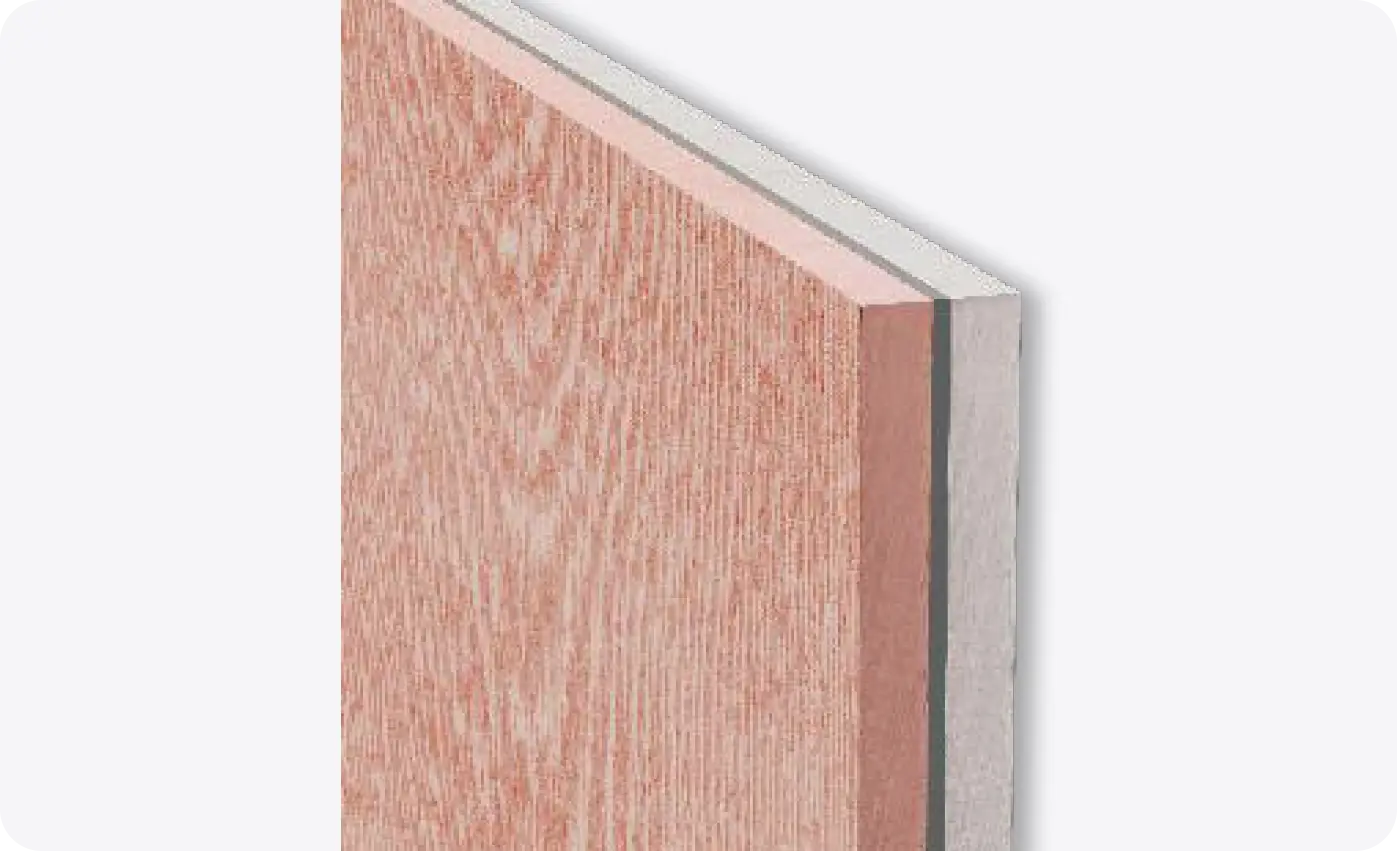

Different densities of inorganic fire-resistant high-strength positive and negative panels, sandwich-structured under high pressure, create a damping constraint structure, altering the original material's resonant frequency and resulting in superior sound transmission loss, thus significantly increasing the airborne and structural sound insulation of the original materials.
- Application：
Its superior environmental protection properties make it suitable for upgrading and renovating the sound insulation of structural partitions, existing walls, and ceilings in residences, hotel rooms, music rooms, recording studios, etc.
- Airborne Sound Insulation：
The G15E/G16E eco-friendly damping sound-insulating panel utilizes a high-performance IIR polymer zero-emission damping layer, leveraging its superior damping properties.
Featuring inorganic non-combustible high-strength front/rear panels of different densities, the sandwich structure is formed through high-pressure composite molding. This creates a damping constraint structure that alters the original material's resonance frequency, delivers exceptional sound transmission loss performance, and multiplicatively enhances both airborne and structural sound insulation capacity.
With outstanding environmental characteristics, it is suitable for residential units, hotel rooms, piano studios, recording studios, and other spaces requiring structural partition walls or upgrades to existing walls and ceilings for improved sound insulation.
