Environmental Damping Sound Insulation Panel - SoundBox
G17E
Environmental Damping Sound Insulation Panel
Suitable for enhancing the sound insulation of partition walls, original walls, and ceilings in places such as residences, private cinemas, HiFi listening rooms, and piano rooms.
- Model：
G17E Environmental Damping Sound Insulation Panel
- Specification：
1220mm (L) x 1220mm (W) x 13mm (T)
- Area：
1.4884m²
- Density：
19.9kg/㎡
- Weight：
1480kg (50pcs/pallet)
- Feature：

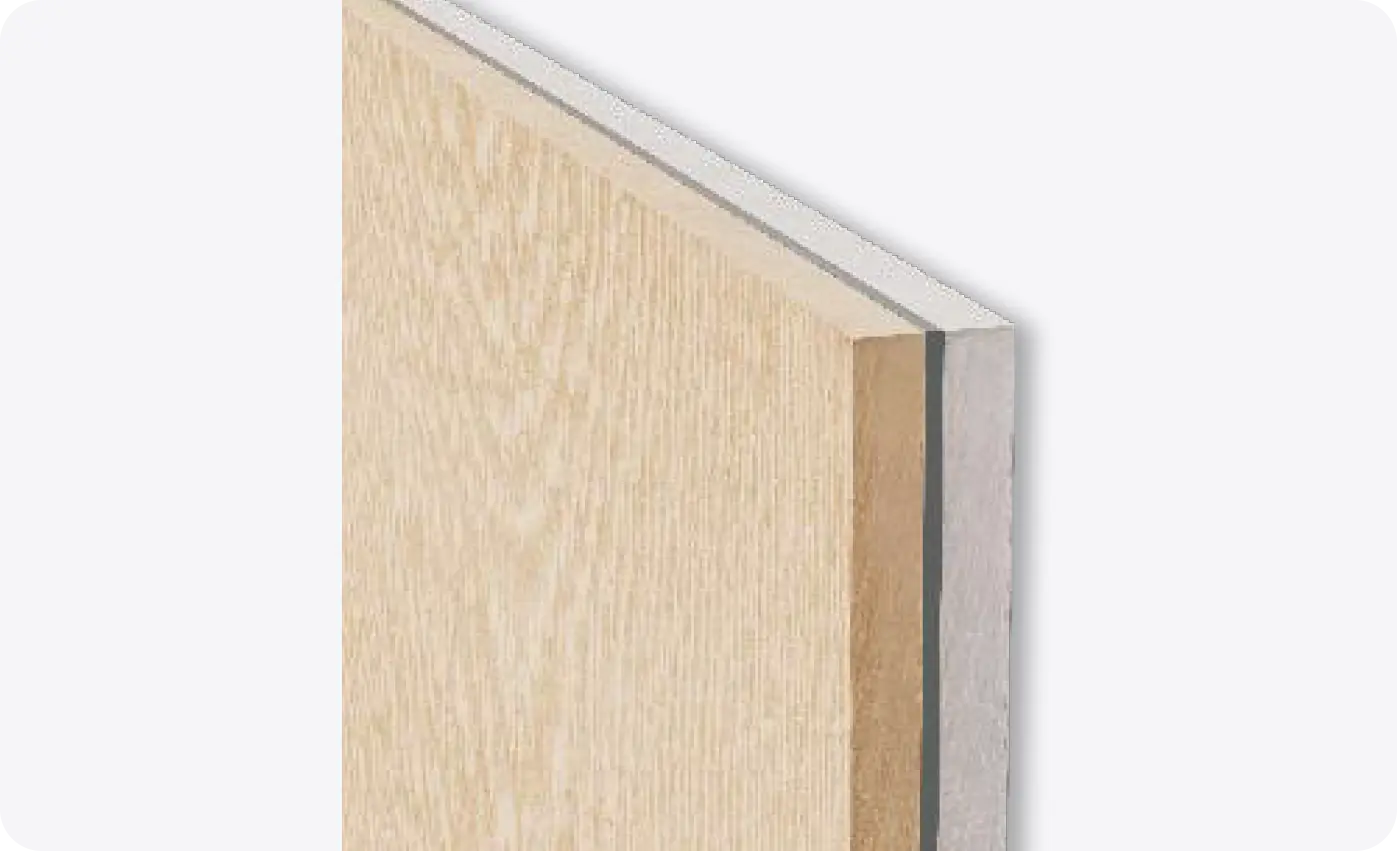

Inorganic, flame-retardant, high-strength positive and negative panels of varying densities, high-pressure composite molding in a sandwich structure, form a damping constraint structure. This alters the original material's resonant frequency, resulting in superior sound transmission loss and significantly increasing both the airborne and structural sound insulation of the original materials.
- Application：
Its superior environmentally friendly properties make it suitable for upgrading the sound insulation of structural partitions, existing walls, and ceilings in residences, private cinemas, HIF listening rooms, music rooms, etc.
- Airborne Sound Insulation：
The G17E eco-friendly damping sound-insulating panel incorporates a modified IIR zero-emission, high-efficiency damping layer.
Constructed with inorganic, non-combustible, high-strength front and back panels of varying densities, it adopts a sandwich structure formed through high-pressure composite molding. This design creates a damping constraint mechanism that modifies the original material's resonance frequency, delivering exceptional sound transmission loss performance while multiplicatively enhancing both airborne and structural sound insulation capacity.
With outstanding environmental properties, it is suitable for residential units, private cinemas, Hi-Fi listening rooms, piano studios, and other spaces requiring structural partition walls or upgrades to existing walls and ceilings for improved sound insulation.
