Environmental Damping Sound Insulation Panel - SoundBox
G19E
Environmental Damping Sound Insulation Panel
Suitable for enhancing the sound insulation of partition walls, original walls, and ceilings in places such as residences, private cinemas, HiFi listening rooms, and piano rooms.
- Model：
G19E Environmentally friendly damping sound insulation board
- Size：
1220mm (L) x 1220mm (W) x 15mm (T)
- Single Piece Area：
1.4884m²
- Areal Density：
20.2kg/㎡
- Packing Weight：
60kg (2pc/pallet)
- Features：

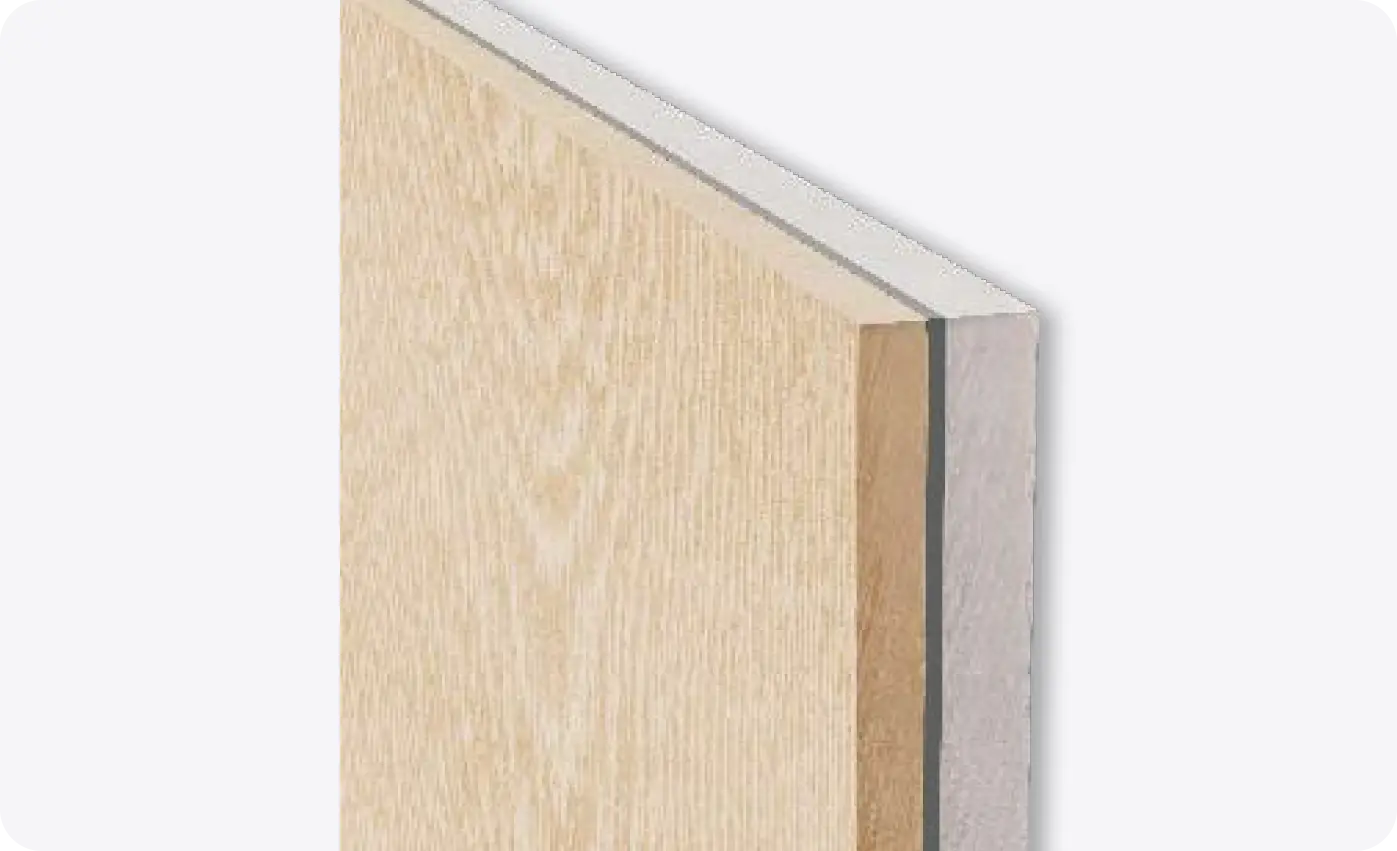

Different density inorganic insulated high-strength positive and negative panels, sandwich structure high-pressure composite molding, form a damping constraint structure, change the resonance frequency of the original material, superior sound transmission loss, multiple times increase the air sound insulation and structural sound insulation of the original material.
- Scope of Application：
It is suitable for improving the sound insulation of structural walls, original walls and ceilings in residences, private cinemas, HIFI listening rooms, piano rooms and other structures.
- Veneer Air Sound Insulation：
The eco-friendly damping sound-insulating panel utilizes a modified IIR zero-emission, high-efficiency environmental damping layer.
It features inorganic, non-combustible, high-strength front and back panels of varying densities, which are formed into a sandwich structure through high-pressure composite molding. This creates a damping constraint structure that alters the original material's resonance frequency, delivers exceptional sound transmission loss performance, and multiplicatively enhances both the airborne and structural sound insulation capacity of the base material.
